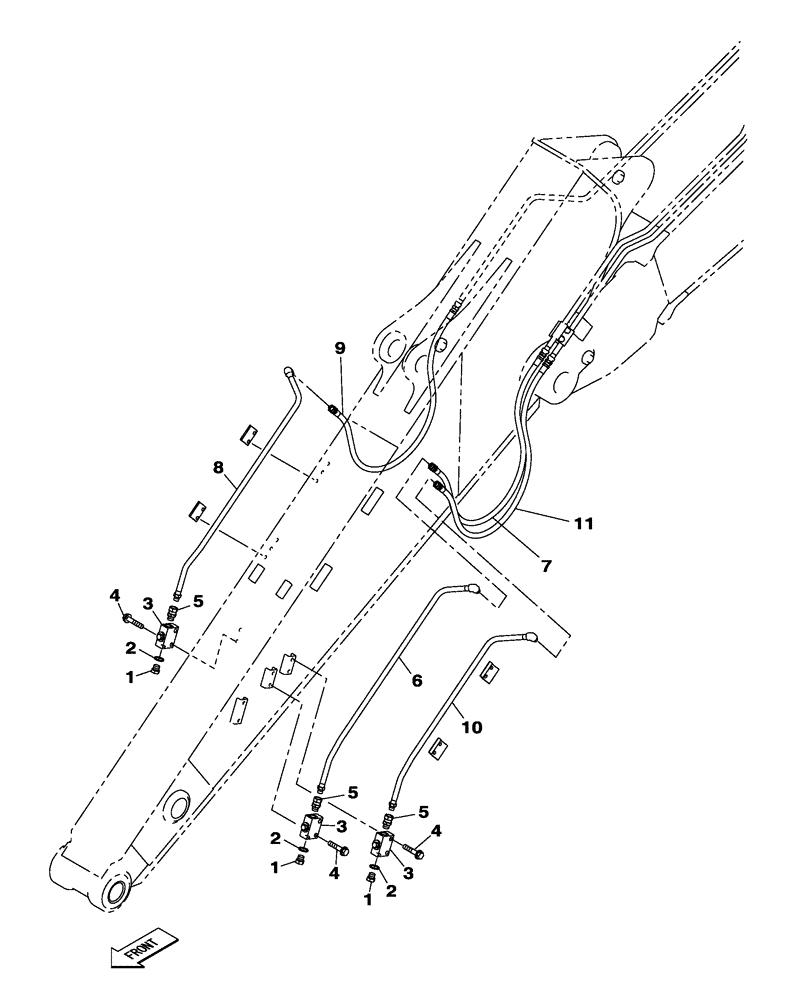

Запчасти Case CX235C SR (35.737.05) - HYD. LINE - DIPPER - LOW FLOW (35) - HYDRAULIC SYSTEMS

1

159085A1

PLUG

Incl 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10440

VALVE

See Figure 35.350.10

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60

6шт.

5

KHJ1939

FITTING

3шт.

6

KRV23260

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

7

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

8

KRV23270

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

9

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

10

KRV23280

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

11

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.
