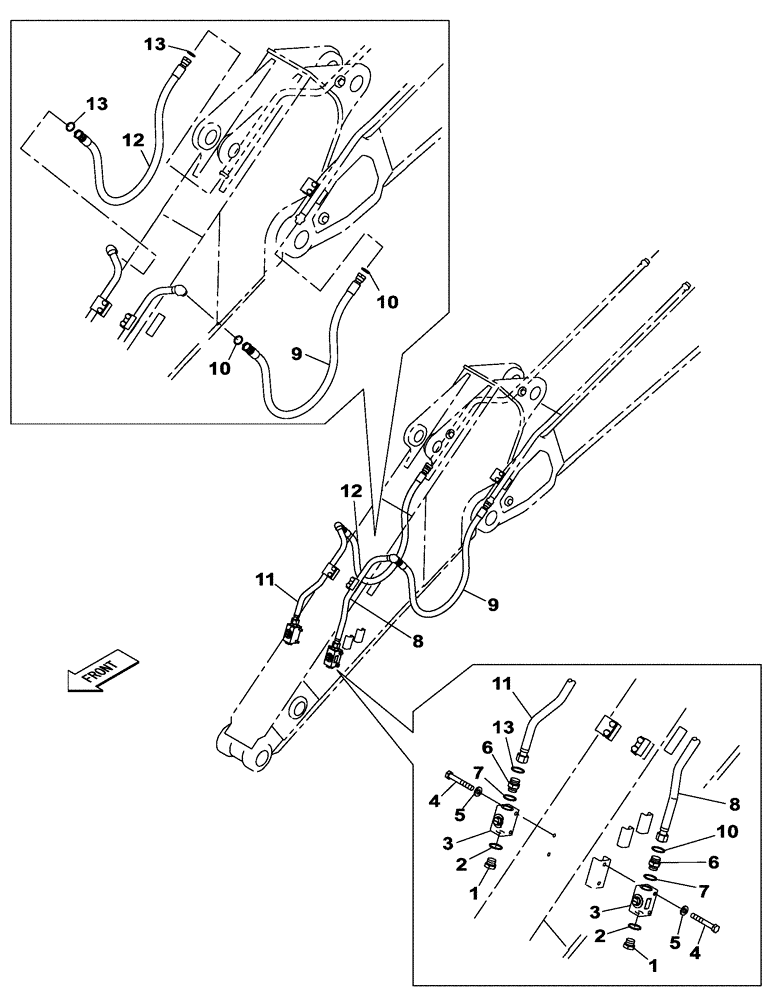

Запчасти Case CX235C SR (35.737.04) - HYD. LINE - DIPPER 2.40 M - OPTIONAL (35) - HYDRAULIC SYSTEMS

1

162659A1

PLUG

Incl 2

2шт.

2

154523A1

O-RING

1шт.

3

KHV10430

SHUT-OFF VALVE

See Figure 35.350.09

2шт.

4

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1349

ADAPTER

Incl 7

2шт.

7

154523A1

O-RING

1шт.

8

KRV33160

PIPE

1шт.

9

KBV23640

HYDRAULIC HOSE

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

11

KRV33170

HYD TUBE

1шт.

12

KBV23640

HYDRAULIC HOSE

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.
