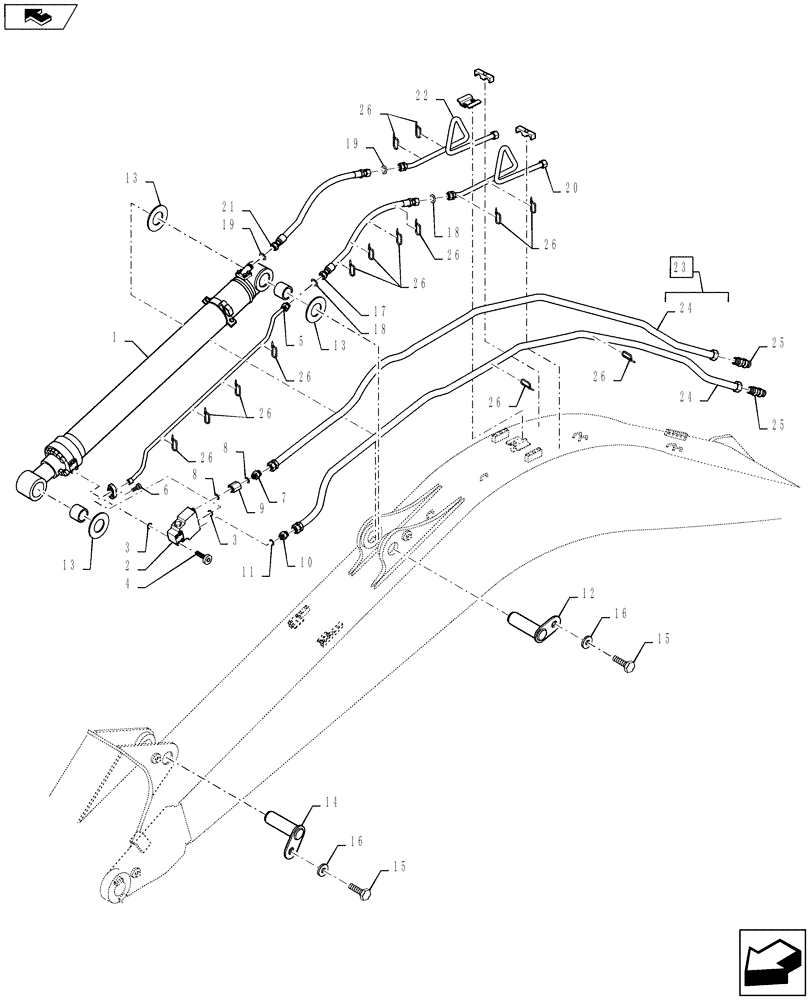

Запчасти Case CX235C SR (35.737.02) - HYD. LINE - ARM CYLINDER (35) - HYDRAULIC SYSTEMS

1

KRV33040

CYLINDER

See Figure 35.737.08

1шт.

1

KRV33040R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR TIER 4 (NA) (3/12-)

1шт.

1

KRV33040C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV11120

VALVE SECTION

Replaced by KSV17260, See Figure 35.350.01

1шт.

2

KSV17260

SAFETY VALVE

1шт.

3

155211A1

O-RING

2шт.

4

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

5

KRV12090

HYD TUBE

1шт.

6

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

7

152747A1

ADAPTER

Incl 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

9

162525A1

STUD

Incl 8

1шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl 11

1шт.

11

154475A1

O-RING

1шт.

12

KRV10981

PIN

1шт.

13

158691A1

WASHER

2шт.

14

KRV32521

PIN

1шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

16

157141A1

WASHER

2шт.

17

KBV23530

HYDRAULIC HOSE

1шт.

18

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

19

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

20

KRV36330

PIPE

1шт.

21

KRV25341

HOSE

1шт.

22

KRV36340

PIPE

1шт.

23

NSS

NOT SOLD SEPARAT

Hose Set, Incl 24

1шт.

24

KHJ26210

HYDRAULIC HOSE

2шт.

25

162826A1

ADAPTER

2шт.

26

150496A1

MOUNTING CLIP

Band, Harness

12шт.
