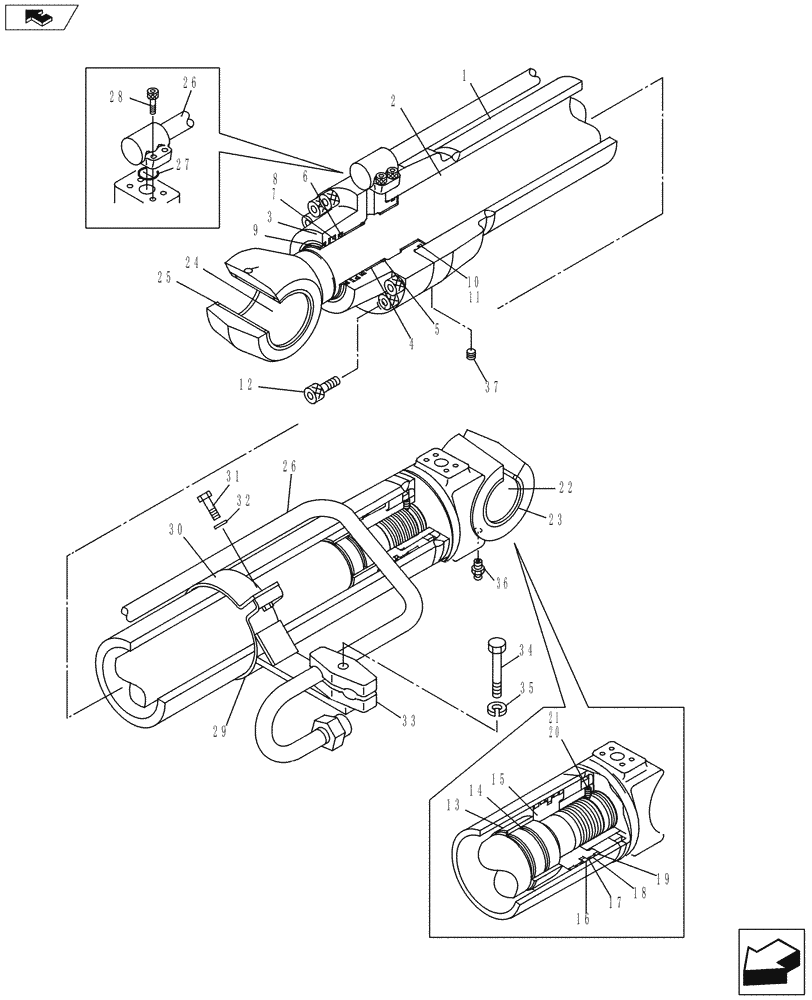

Запчасти Case CX235C SR (35.736.06) - BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

0

KRV33920

CYLINDER

Incl 1 - 37

1шт.

0

KRV33920R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

0

KRV33920C

CORE-HYD CYLINDER

Return Number

1шт.

1

LR018920

TUBE

1шт.

2

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Tube, Cyl, Incl in 1

1шт.

4

155419A1

BUSHING

1шт.

5

155697A1

RING, SNAP

RING SNAP

1шт.

6

LE013140

RING

1шт.

7

LE013150

RING

1шт.

8

155232A1

BACK-UP RING

1шт.

9

158147A1

WIPER SEAL

Wiper

1шт.

10

154753A1

O-RING,114.4mm ID x 3.1mm Width

1шт.

11

155234A1

BACK-UP RING

1шт.

12

161059A1

BOLT,Hex Skt, M16 x 70mm, Cl 12.9

HEX SOC HD

12шт.

13

LE018880

CUSHION

1шт.

14

LE00704

SEAL

1шт.

15

LJ014150

PISTON

1шт.

16

155313A1

SEALING RING

1шт.

17

LE00705

BACK-UP RING

2шт.

18

LE013170

BACK-UP RING

2шт.

19

155308A1

RING

Slide

2шт.

20

156223A1

SET SCREW

1шт.

21

155977A1

BALL

Steel

1шт.

22

KRV2401

SELF LUB RING

1шт.

23

160483A1

BACK-UP RING

Wiper

2шт.

24

KRV2395

SELF LUB RING

1шт.

25

160484A1

WIPER SEAL

Ring, Wiper

2шт.

26

LK006370

PIPE

Hydraulic

1шт.

27

154528A1

O-RING

1шт.

28

87016471

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10X30 FULL 12.9 BLO

4шт.

29

LD001370

CLAMP BRACKET

1шт.

30

LD00040

CLAMP BRACKET

1шт.

31

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

High Strength

2шт.

32

156227A1

WASHER

2шт.

33

155701A1

COLLAR

Holder, Pipe

2шт.

34

153910A1

BOLT,High Strength, Hex, M14 x 80mm

High Strength

1шт.

35

892-16014

LOCK WASHER,M14, Hvy

Sring Lock 14MM HVY ZND

1шт.

36

153630A1

LUBE NIPPLE

Grease

1шт.

37

TLU0003

PLUG

1шт.
