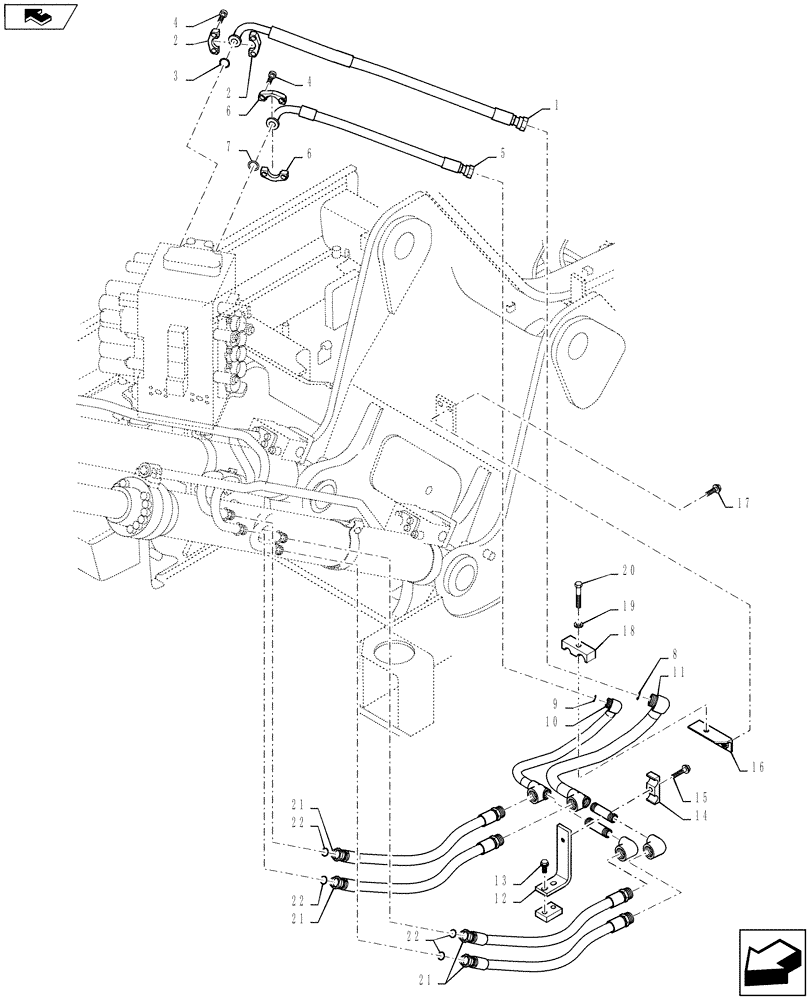

Запчасти Case CX235C SR (35.736.03) - HYD. LINE - BOOM (35) - HYDRAULIC SYSTEMS

1

KRJ31670

HYDRAULIC HOSE

1шт.

2

153459A1

FLANGE

2шт.

3

155211A1

O-RING

1шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

5

KRJ31660

HYDRAULIC HOSE

1шт.

6

153458A1

FLANGE

2шт.

7

155210A1

O-RING

1шт.

8

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

10

KRJ30340

PIPE

1шт.

11

KRJ30350

PIPE

1шт.

12

KRJ30360

BRACKET

1шт.

13

166352A1

BOLT

2шт.

14

152085A1

COLLAR

1шт.

15

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.

16

KRJ31010

BRACKET

1шт.

17

105R012Y045R

BOLT

2шт.

18

153186A1

COLLAR

1шт.

19

150811A1

WASHER

1шт.

20

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

21

KRJ31100

HYDRAULIC HOSE

4шт.

22

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
