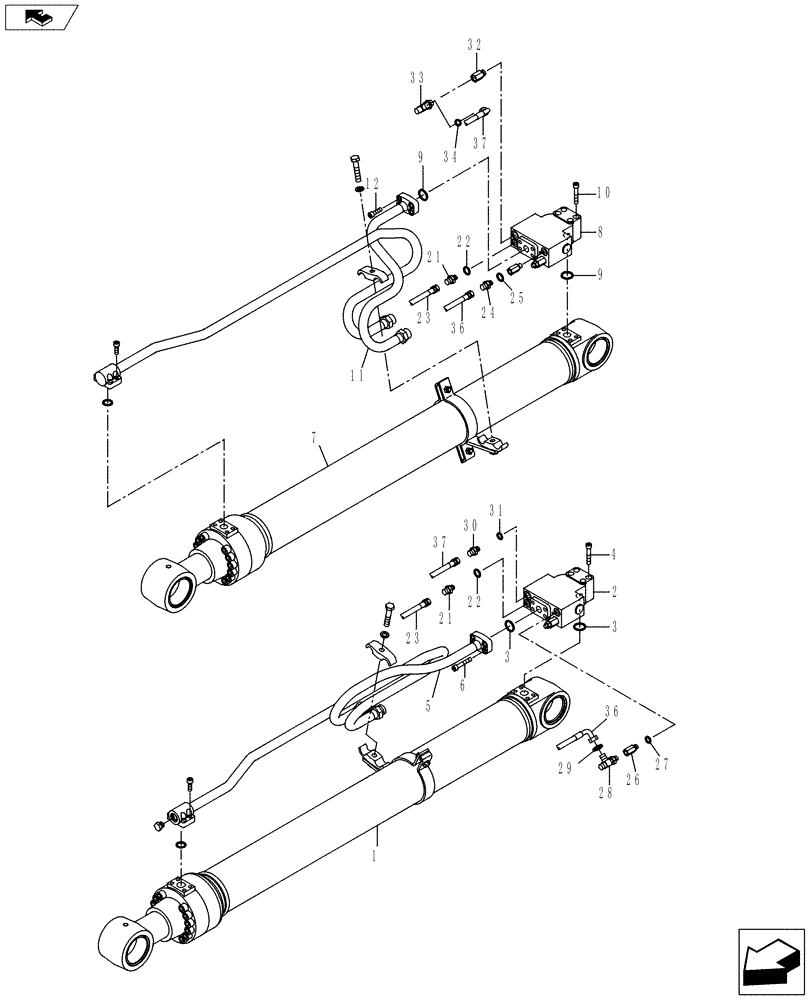

Запчасти Case CX235C SR (35.736.02[01]) - HYD. LINE - BOOM CYLINDER (35) - HYDRAULIC SYSTEMS

1

KRV33930

CYLINDER

See Figure 35.736.07

1шт.

1

KRV33930R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

1

KRV33930C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV11110

VALVE SECTION

See Figure 35.350.02

1шт.

3

155210A1

O-RING

2шт.

4

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

5

KRV12070

HYD TUBE

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

KRV33920

CYLINDER

1шт.

7

KRV33920R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

7

KRV33920C

CORE-HYD CYLINDER

Return Number

1шт.

8

KRV11110

VALVE SECTION

1шт.

9

155210A1

O-RING

2шт.

10

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

SOC HD M10X70 12.9 ZND

4шт.

11

KRV12080

HYD TUBE

1шт.

12

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

21

152747A1

ADAPTER

Incl 22

2шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

23

KRV19790

HYDRAULIC HOSE

1шт.

24

KNJ1106

HYD CONNECTOR

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

26

162525A1

STUD

Incl 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

28

162827A1

TEE

Incl 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

30

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

32

KHV0373

STUD

1шт.

33

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl 34

1шт.

34

154475A1

O-RING

1шт.

36

KRV19790

HYDRAULIC HOSE

1шт.

37

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in Upper Assy

1шт.
