(CX235C SR) - CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)
/
(00) - GENERAL & PICTORIAL INDEX
/

(00.000.00) - PICTORIAL INDEX - MAIN SECTIONS

Запчасти Case CX235C SR (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX

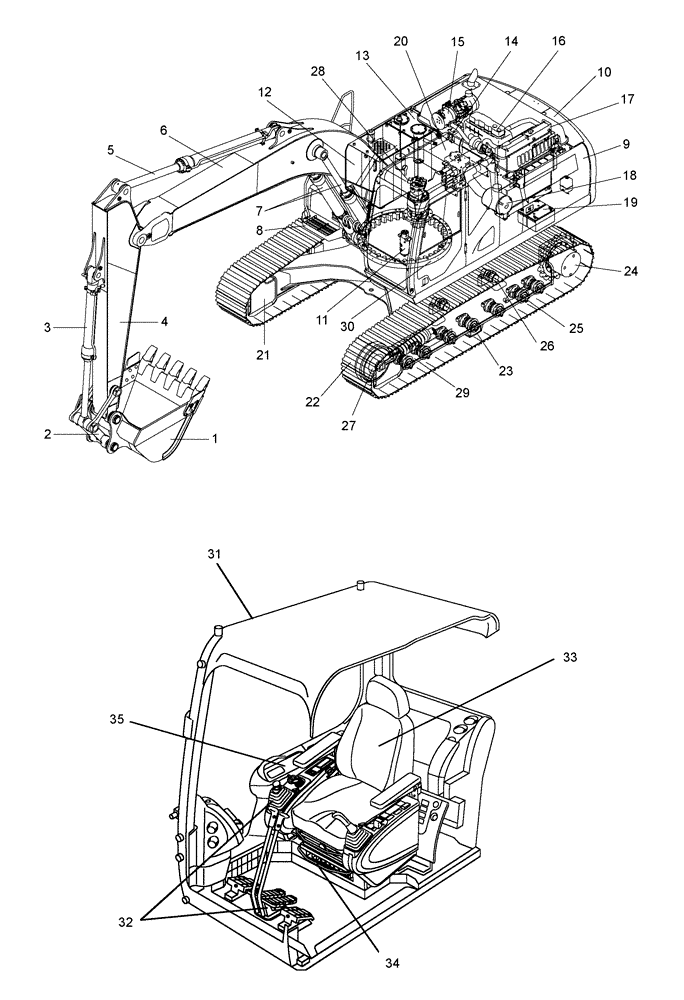

Схема запчастей Case CX235C SR - (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX
12
10
16
35
17
3
9
2
19
15
20
8
1
13
7
30
28
24
23
5
14
o
34
11
25
33
29
26
22
18
4
32
21
1
27
6
31

№

Артикул

Название

Примечание

Количество

1

BUCKET - See Figure(s) 84.100.01

1шт.

2

BUCKET CONTROL - See Figure(s) 84.100.01

1шт.

3

BUCKET CYLINDER - See Figure(s) 35.738.01 - .03

1шт.

4

DIPPER - See Figure(s) 84.912.01 - .03

1шт.

5

DIPPER CYLINDER - See Figures 35.737.08 - .09

1шт.

6

BOOM - See Figure(s) 84.910.01

1шт.

7

BOOM CYLINDER - See Figure(s) 35.736.06 - .09

1шт.

8

FRAME - See Figure(s) 39.101.01 - .02, 39.102.01 - .02

1шт.

9

HOOD GUARD - See Figure(s) 90.100.01

1шт.

10

COUNTERWEIGHT - See Figure(s) 39.140.01

1шт.

11

SWING JOINT - See Figure(s) 35.354.01

1шт.

12

FUEL TANK, FUEL SYSTEM - See Figure(s) 10.216.01 - .03, 10.218.01

1шт.

13

HYDRAULIC SYSTEM - See Figure(s)

1шт.

14

HYDRAULIC PUMP - See Figure(s) 35.106.01 - .02

1шт.

15

EXHAUST ENGINE - See Figure(s) 10.254.01

1шт.

16

ENGINE - See Figure(s) 10.001.01 - 10.001.05, 10.101.01 - .02, 10.102.01, 10.103.01

1шт.

17

RADIATOR - See Figure(s) 10.400.01, 10.406.30

1шт.

18

AIR FILTRATION - See Figure(s) 10.202.01 - .02

1шт.

19

BATTERIES, ELECTRICAL SYSTEM - See Figure(s) 10.202.01 - .02

1шт.

20

CONTROL VALVE - See Figure(s) 35.359.02 -.04

1шт.

21

UNDERCARRIAGE, HYDRAULIC CIRCUIT - See Figure(s) 35.310.07 - .09

1шт.

22

TRACK FOOT STEP - See Figure(s) 48.100.01 - .05

1шт.

23

GUIDE, CHAIN - See Figure(s) 48.130.02 - .03

1шт.

24

TRAVEL MOTOR AND REDUCTIONGEAR - See Figure(s) 48.130.05

1шт.

25

ROLLER LOWER - See Figure(s) 48.138.02

1шт.

26

ROLLER UPPER - See Figure(s) 48.138.01

1шт.

27

GUIDE PULLEY - See Figure(s) 48.130.01

1шт.

28

SWING MOTOR-DRIVE REDUCTION GEAR - See Figure(s) 35.352.03

1шт.

29

TENSION DAMPER - See Figure(s) 48.134.01

1шт.

30

SWING COMPONENTS, LUBRICATION CIRCUIT - See Figure(s) 35.352.03

1шт.

31

OPERATORS COMPARTMENT, CAB - See Figure(s) 09-029-00 01 - 90.110.01

1шт.

32

OPERATORS COMPARTMENT, JOYSTICK, CONTROL - See Figure(s) 35.355.01

1шт.

33

OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING - See Figure(s) 90.120.01

1шт.

34

CAB AIR CONDITIONING - See Figure(s) 50.200.01

1шт.

35

SIDE INSTRUMENT PANEL - See Figure(s) 90.150.01 02

1шт.

Выбрано товаров: 35
