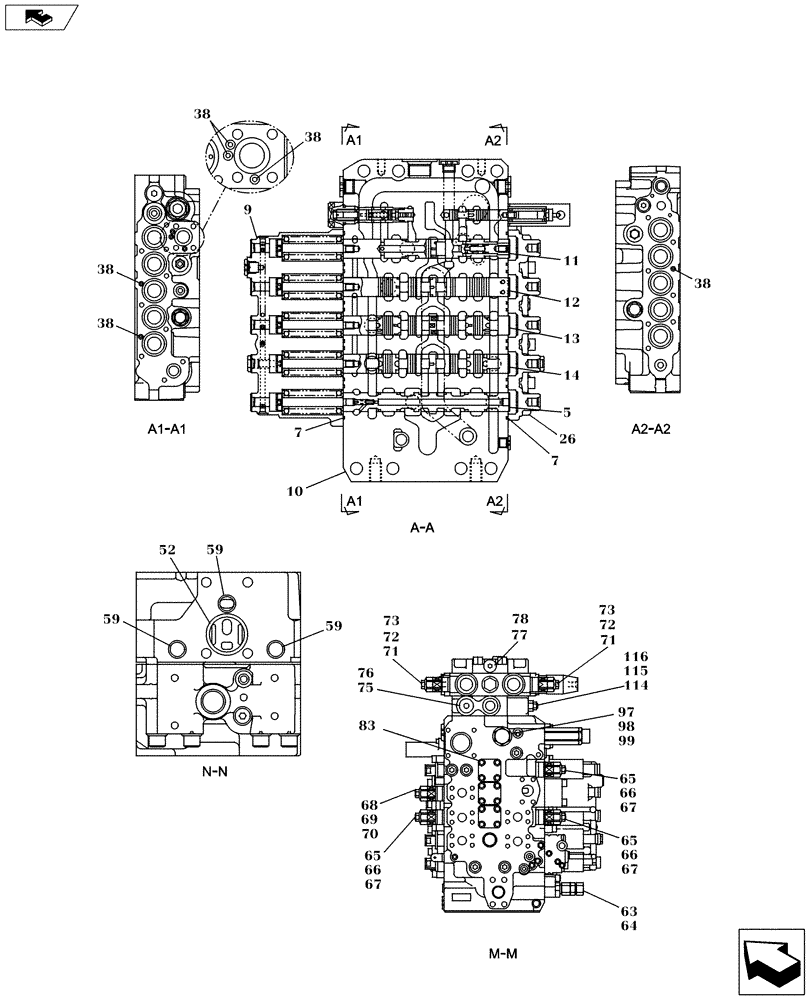

Запчасти Case CX235C SR (35.359.04[02]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS

0

KRJ31330

CONTROL VALVE

1шт.

5

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

7

154589A1

O-RING

20шт.

9

LR019390

CAP

1шт.

10

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

11

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

12

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

13

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

14

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

26

LR019400

CAP

1шт.

38

154447A1

O-RING

17шт.

52

154625A1

O-RING

1шт.

59

LE012520

O-RING

3шт.

63

LJ014720

VALVE PRESSURE RELIE

Incl 64

1шт.

64

155223A1

O-RING

1шт.

65

LJ014730

VALVE PRESSURE RELIE

Incl 66 - 67

5шт.

66

155223A1

O-RING

5шт.

67

154463A1

O-RING

5шт.

68

LJ014740

VALVE PRESSURE RELIE

Incl 69 - 70

1шт.

69

155223A1

O-RING

1шт.

70

154463A1

O-RING

1шт.

71

LJ014750

CHECK VALVE

Incl 72 - 73

1шт.

72

154463A1

O-RING

1шт.

73

155223A1

O-RING

1шт.

75

163370A1

PLUG

Incl 76

4шт.

76

LBQ0182

O-RING

4шт.

77

163369A1

PLUG

Incl 78

9шт.

78

154475A1

O-RING

9шт.

83

108R010Z040B

BOLT

46шт.

97

LK00302

PLUG

Incl 98 - 99

2шт.

98

165836A1

PLUG

2шт.

99

154503A1

O-RING

2шт.

114

LJ014780

CHECK VALVE

Incl 115 - 116

1шт.

115

155221A1

O-RING

1шт.

116

154463A1

O-RING

1шт.
