Запчасти Case CX235C SR (35.359.03[03]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS

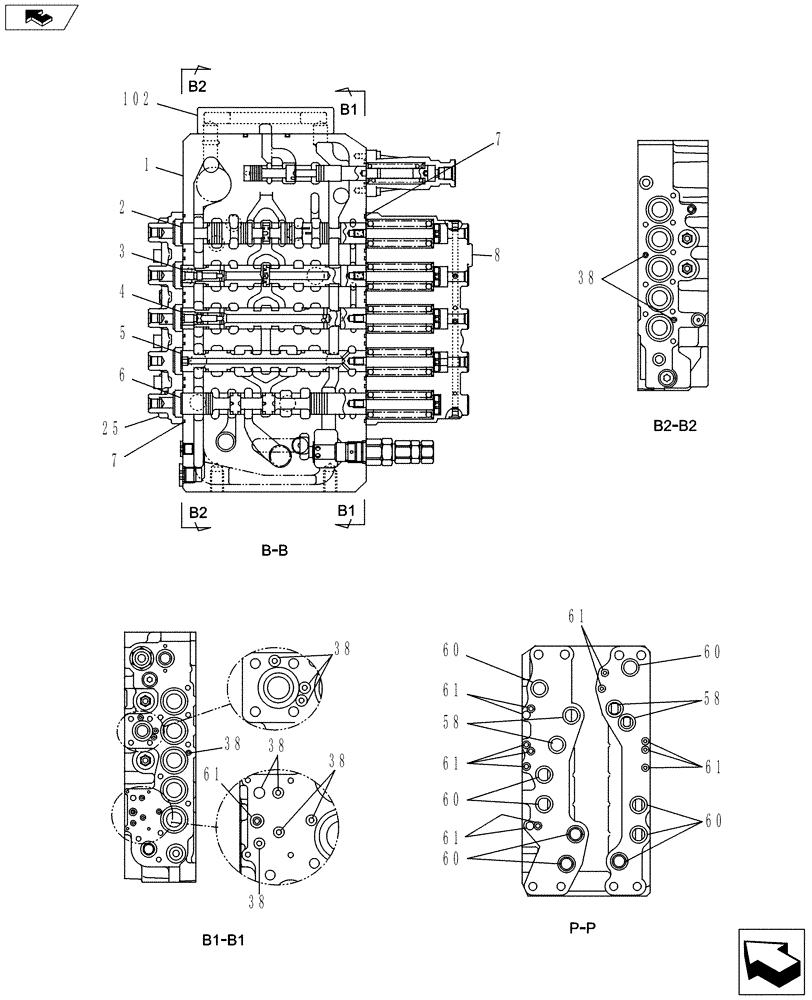

![Схема запчастей Case CX235C SR - (35.359.03[03]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/590779.png)
61
38
38
5
38
60
61
60
38
7
60
1
58
2
3
4
61
38
102
25
8
61
7
6
61
58
60
61
38
60
№
Артикул
Название
Примечание
Количество
0
KRJ31050
CONTROL VALVE
1шт.
1
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
2
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
3
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
4
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
5
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
2шт.
6
NSS
NOT SOLD SEPARAT
No Longer Included in BOM, Remove From Art
1шт.
7
154589A1
O-RING
20шт.
8
LR019380
CAP
1шт.
25
LR019410
CAP
1шт.
58
LE019670
O-RING
4шт.
60
LE018920
O-RING,3.53mm Thk x 25.7mm ID, Cl 6
10шт.
61
154463A1
O-RING
13шт.
102
LT001660
END PLATE
1шт.
Выбрано товаров: 15
