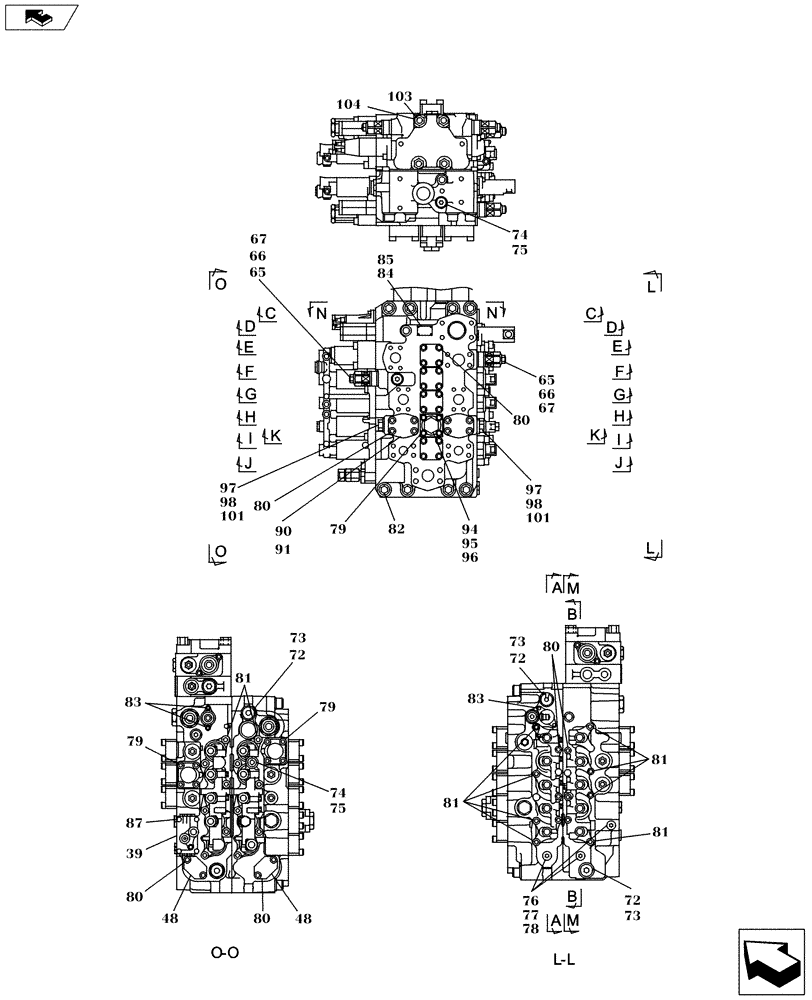

Запчасти Case CX235C SR (35.359.03[01]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS

0

KRJ31050

CONTROL VALVE

1шт.

39

LR019420

HOUSING

1шт.

48

LH00250

CAP

2шт.

65

LJ014730

VALVE PRESSURE RELIE

Incl 66 - 67

5шт.

66

155223A1

O-RING

5шт.

67

154463A1

O-RING

5шт.

72

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

4шт.

73

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

4шт.

74

163369A1

PLUG

Incl 75

9шт.

75

154475A1

O-RING

9шт.

76

163972A1

PLUG

Incl 77 - 78

3шт.

77

LK00328

PLUG

3шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

79

108R010Z055B

BOLT

12шт.

80

108R010Z040B

BOLT

46шт.

81

160287A1

BOLT,Hex Skt

Bolt, HEX SOC HD

20шт.

82

108R016Z130B

BOLT

Bolt, HEX SOC HD

8шт.

83

LUC0118

BOLT,Hex Skt Hd

4шт.

84

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

85

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

87

LA011120

BOLT,Hex Skt Hd

4шт.

90

LR00579

PLUG

2шт.

91

168198A1

O-RING

2шт.

94

LK00302

PLUG

Incl 95 - 96

2шт.

95

165836A1

PLUG

2шт.

96

154503A1

O-RING

2шт.

97

165839A1

PLUG

Incl 98, 101

2шт.

98

LK00327

PLUG

2шт.

101

165779A1

RING

2шт.

103

LB011890

TIE-ROD

4шт.

104

LUC0094

SPECIAL NUT

4шт.
