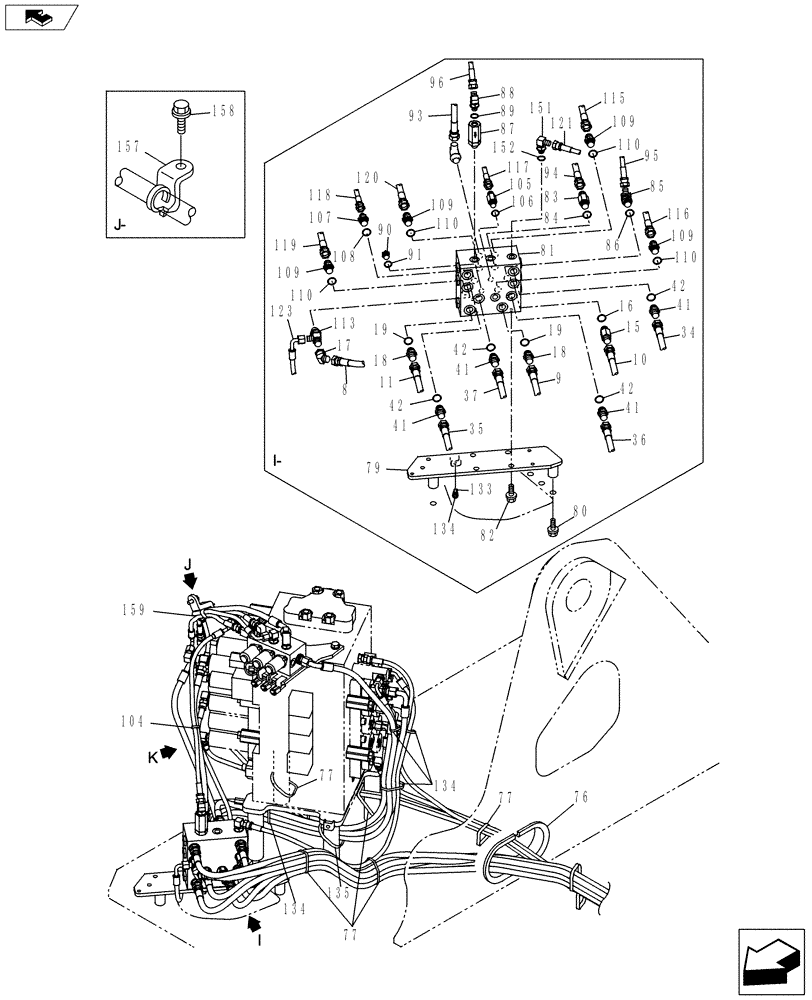

Запчасти Case CX235C SR (35.357.02[03]) - CONTROL LINE - PILOT (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX235C SR - (35.357.02[03]) - CONTROL LINE - PILOT (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/451473.png)
№
Артикул
Название
Примечание
Количество
8
KSJ2127
HYDRAULIC HOSE,3500.00 mm
1шт.
9
KSJ2127
HYDRAULIC HOSE,3500.00 mm
1шт.
10
KSJ2123
HYDRAULIC HOSE
1шт.
16
154475A1
O-RING
1шт.
17
KHJ1739
ELBOW
1шт.
18
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Adapter, Hose, Incl 19
2шт.
19
154475A1
O-RING
2шт.
34
KTJ1526
HYDRAULIC HOSE
1шт.
35
KTJ1526
HYDRAULIC HOSE
1шт.
36
KSJ2126
HYDRAULIC HOSE,3850.00 mm
1шт.
37
KSJ2126
HYDRAULIC HOSE,3850.00 mm
1шт.
76
KRA0808
SHIELD
1шт.
41
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Adapter, Hose
4шт.
77
KAR0017
COLLAR CLAMP
10шт.
42
154475A1
O-RING
4шт.
79
KRJ31800
BRACKET
1шт.
80
105R012Y045R
BOLT
Bolt, SEMS
4шт.
81
KRJ30010
VALVE SECTION
1шт.
82
166347A1
BOLT,Sems, M10 x 30mm
Bolt, SEMS
4шт.
83
159226A1
ADAPTER
Hose, Incl 84
1шт.
84
154475A1
O-RING
1шт.
85
KHJ1445
ELBOW
Incl 86
1шт.
86
154475A1
O-RING
1шт.
87
KHJ10790
FILTER SCREEN
1шт.
88
150933A1
ELBOW
45 deg, Incl 89
1шт.
89
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
90
159002A1
PLUG
Incl 91
1шт.
91
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
93
KHJ23550
HOSE
1шт.
94
KHJ26580
HOSE
1шт.
95
KHJ2046
HOSE
1шт.
96
KHJ12100
HYDRAULIC HOSE
1шт.
104
150496A1
MOUNTING CLIP
1шт.
105
162554A1
FITTING
Stud, Incl 106
1шт.
106
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
107
153378A1
ADAPTER
Hose, Incl 108
1шт.
108
154475A1
O-RING
1шт.
109
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Adapter, Hose, Incl 110
4шт.
110
154475A1
O-RING
4шт.
113
163422A1
TEE
1шт.
115
KHJ2037
HOSE
1шт.
116
KHJ14120
HYDRAULIC HOSE,9.52 mm ID x 950.00 mm
1шт.
117
KHJ2091
HOSE
1шт.
118
KHJ2249
HOSE
1шт.
119
KHJ26380
HOSE
1шт.
120
KHJ14120
HYDRAULIC HOSE,9.52 mm ID x 950.00 mm
1шт.
121
KHJ24910
HOSE ASSY.
1шт.
123
KHJ2096
FLEXIBLE HOSE
1шт.
133
KHR10220
MOUNTING CLIP
1шт.
134
150476A1
PLASTIC-RUBBER TUBE,19.3 mm ID, 23.8 mm OD, 400 mm Length
Band, Harness
5шт.
135
150071A1
MOUNTING CLIP
Band, Harness
1шт.
151
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 deg, Incl 152
2шт.
152
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
157
KHR2581
CLAMP
1шт.
158
KHJ1215
BOLT,Spcl
1шт.
159
150496A1
MOUNTING CLIP
Band, Harness, Serial Range: -k
1шт.
Выбрано товаров: 56
