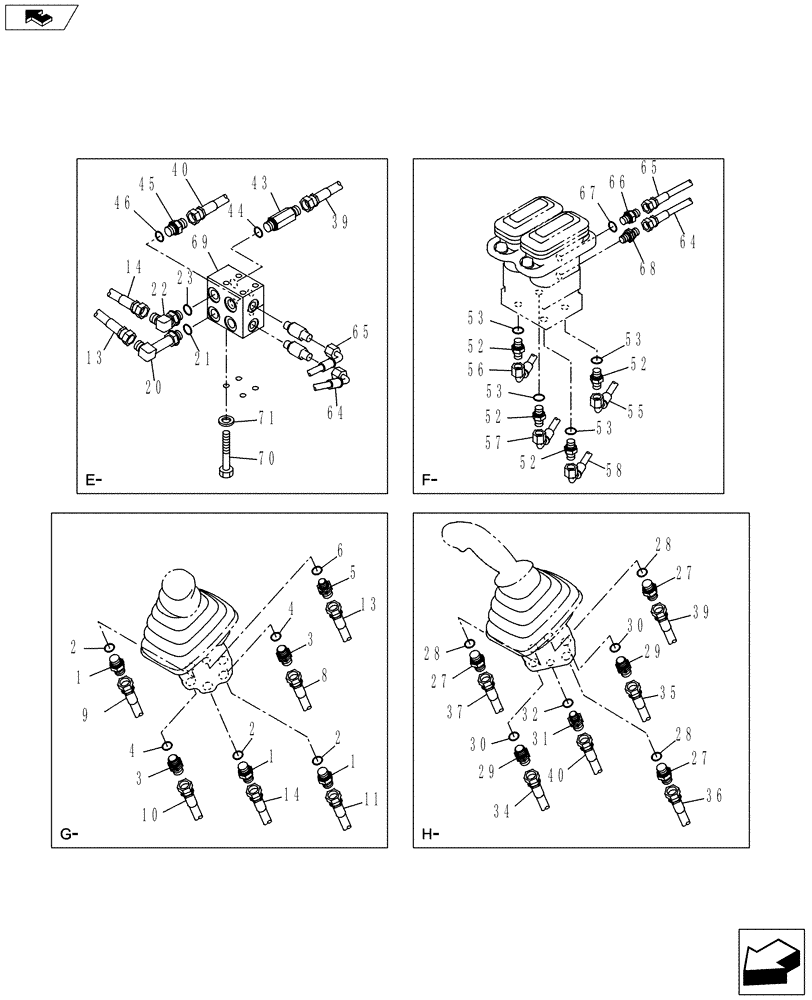

Запчасти Case CX235C SR (35.357.02[02]) - CONTROL LINE - PILOT (35) - HYDRAULIC SYSTEMS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Adapter, Incl 2

3шт.

2

154475A1

O-RING

3шт.

3

KHJ1402

ADAPTER

Hose, Incl 4

2шт.

4

154475A1

O-RING

2шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Hose, Incl 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KSJ2127

HYDRAULIC HOSE,3500.00 mm

1шт.

9

KSJ2127

HYDRAULIC HOSE,3500.00 mm

1шт.

10

KSJ2123

HYDRAULIC HOSE

1шт.

11

KSJ2127

HYDRAULIC HOSE,3500.00 mm

1шт.

13

KHJ24350

HOSE

Nylon

1шт.

14

KHJ24350

HOSE

Nylon

1шт.

20

KHJ1442

ELBOW

Incl 21

1шт.

21

154475A1

O-RING

1шт.

22

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 deg, Incl 23

1шт.

23

154475A1

O-RING

1шт.

27

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Adapter, Hose, Incl 28

3шт.

28

154475A1

O-RING

3шт.

29

KHJ1402

ADAPTER

Hose, Incl 30

2шт.

30

154475A1

O-RING

2шт.

31

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Hose, Incl 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

KTJ1526

HYDRAULIC HOSE

1шт.

35

KTJ1526

HYDRAULIC HOSE

1шт.

36

KSJ2126

HYDRAULIC HOSE,3850.00 mm

1шт.

37

KSJ2126

HYDRAULIC HOSE,3850.00 mm

1шт.

39

KHJ2272

HOSE ASSY.

Nylon

1шт.

40

KHJ2438

HOSE

Nylon

1шт.

43

KAJ2351

FITTING

1шт.

44

154475A1

O-RING

1шт.

45

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Adapter, Incl 46

1шт.

46

154475A1

O-RING

1шт.

52

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Adapter, Hose, Incl 53

4шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

55

KHJ2198

HOSE,6.3mm ID x 2850mm L

Nylon

1шт.

56

KHJ2599

HOSE

Nylon

1шт.

57

KHJ2198

HOSE,6.3mm ID x 2850mm L

Nylon

1шт.

58

KHJ2599

HOSE

Nylon

1шт.

64

KHJ2084

HOSE

Nylon

1шт.

65

KHJ2084

HOSE

Nylon

1шт.

66

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Adapter, Hose, Incl 67

1шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

161841A1

HYD CONNECTOR

Nipple

1шт.

69

KRJ5903

MANIFOLD

1шт.

70

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

High Strength, M8 X 100 CLASS 10.9 PHC

4шт.

71

153081A1

WASHER

4шт.
