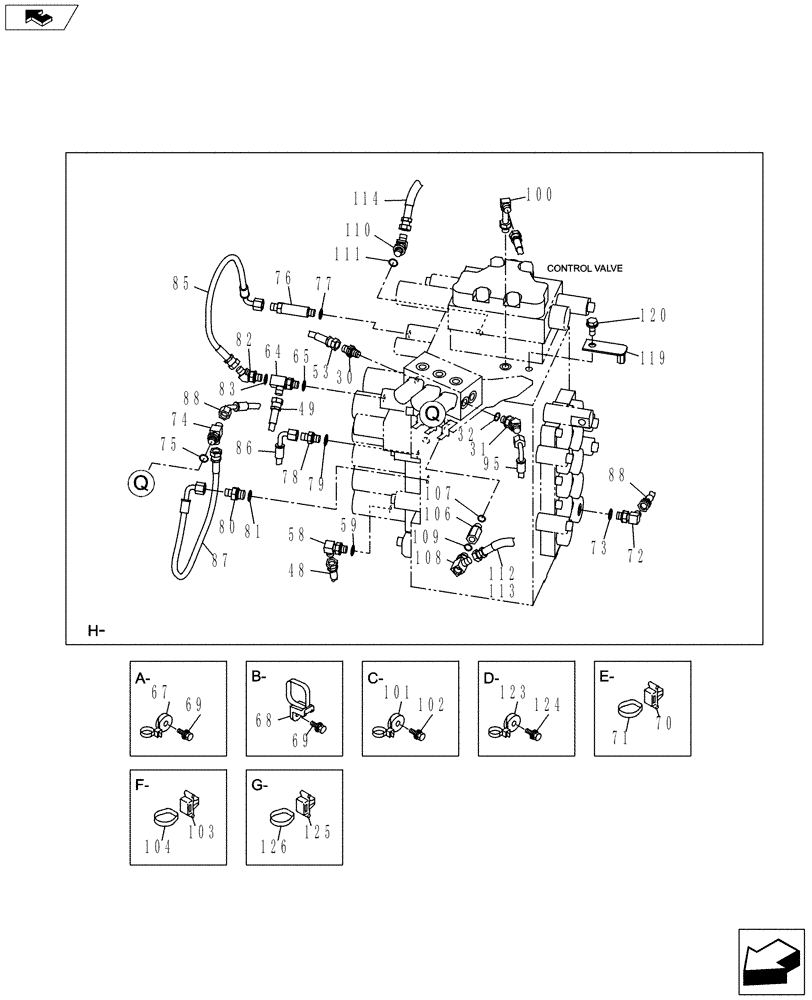

Запчасти Case CX235C SR (35.357.01[03]) - PILOT PRESS AND RETURN LINE (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX235C SR - (35.357.01[03]) - PILOT PRESS AND RETURN LINE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/184074.png)
№
Артикул
Название
Примечание
Количество
30
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
31
150933A1
ELBOW
45 deg, Incl 32
1шт.
32
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
48
KHJ2167
HOSE
1шт.
49
KHJ13660
HYDRAULIC HOSE
1шт.
53
KHJ18020
HOSE
1шт.
58
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 deg, Incl 59
2шт.
59
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
2шт.
64
KHJ2773
TEE
Incl 65
1шт.
65
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
67
KHR2584
CLAMP
3шт.
68
KHR2581
CLAMP
1шт.
69
KHJ1215
BOLT,Spcl
M8x25
4шт.
70
KHR10220
MOUNTING CLIP
Spl
5шт.
71
150496A1
MOUNTING CLIP
Band, Harness
9шт.
72
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 deg, Incl 73
1шт.
73
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
74
159497A1
TEE
Incl 75
1шт.
75
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
76
163104A1
ADAPTER
Incl 77
1шт.
77
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
78
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 79
1шт.
79
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
80
153378A1
ADAPTER
Incl 81
1шт.
81
154475A1
O-RING
1шт.
82
150933A1
ELBOW
45 deg, Incl 83
1шт.
83
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
85
KHJ2179
HOSE
1шт.
86
KHJ2440
HOSE
1шт.
87
KHJ2085
HOSE
1шт.
88
KHJ21880
FLEXIBLE HOSE
1шт.
95
KHJ2167
HOSE
1шт.
100
KHJ1178
ELBOW
1шт.
101
KHR2584
CLAMP
2шт.
102
KHJ1215
BOLT,Spcl
2шт.
103
KHR10220
MOUNTING CLIP
7шт.
104
150496A1
MOUNTING CLIP
Band, Harness
7шт.
106
150071A1
MOUNTING CLIP
Incl 107
1шт.
107
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
108
KHJ2773
TEE
Incl 109
1шт.
109
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
110
150933A1
ELBOW
45 deg, Incl 111
1шт.
111
154467A1
O-RING,10.8mm ID x 2.4mm Width
NBR70K6 10.80IDX240
1шт.
112
NSS
NOT SOLD SEPARAT
Hose Assy, Incl 113 - 114
1шт.
113
KHJ26450
HYDRAULIC HOSE
1шт.
114
KHJ26440
HYDRAULIC HOSE
1шт.
119
KRJ25870
BRACKET
1шт.
120
166052A1
BOLT
1шт.
123
KHR2584
CLAMP
4шт.
124
KHJ1215
BOLT,Spcl
4шт.
125
KHR10220
MOUNTING CLIP
6шт.
126
150496A1
MOUNTING CLIP
Tube, Vinyl
8шт.
127
KHJ25100
STUD
Not shown
1шт.
Выбрано товаров: 53
