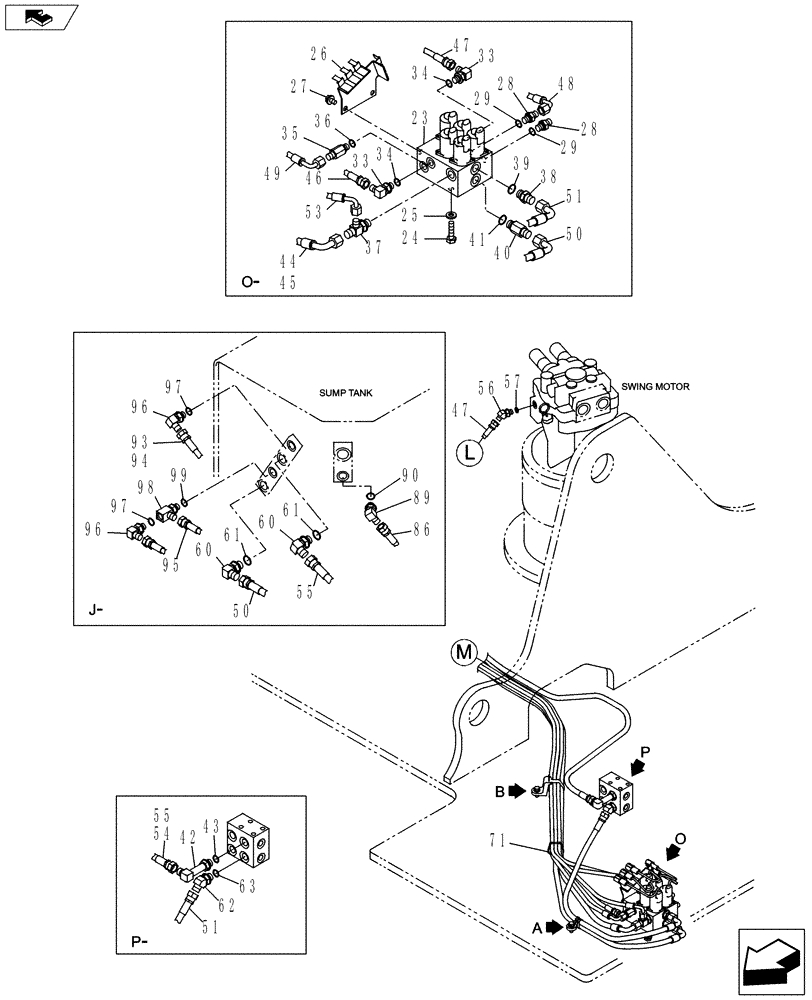

Запчасти Case CX235C SR (35.357.01[02]) - PILOT PRESS AND RETURN LINE (35) - HYDRAULIC SYSTEMS

23

KHJ14520

SOLENOID VALVE

1шт.

24

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Replaced by 43248

2шт.

25

150409A1

WASHER

High Strength

2шт.

26

KRJ31560

BRACKET

1шт.

27

166345A1

BOLT

2шт.

28

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Adapter, Hose, Incl 29

2шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

33

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 deg, Incl 34

2шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

35

162554A1

FITTING

Stud, Incl 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

37

163422A1

TEE

1шт.

38

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl 39

1шт.

39

154475A1

O-RING

1шт.

40

159226A1

ADAPTER

Incl 41

1шт.

41

154475A1

O-RING

1шт.

42

KHJ1442

ELBOW

Incl 43

1шт.

43

154475A1

O-RING

1шт.

44

NSS

NOT SOLD SEPARAT

Hose Assy, Incl 45 - 51

1шт.

45

KHJ26430

HOSE

Nylon

1шт.

46

KHJ2812

HOSE,4100.00 mm

Nylon L4100

1шт.

47

KHJ2072

HOSE

Nylon

1шт.

48

KHJ2167

HOSE

Nylon

1шт.

49

KHJ13660

HYDRAULIC HOSE

Nylon

1шт.

50

KHJ26420

HOSE

Nylon

1шт.

51

KHJ21090

HOSE ASSY.

Nylon

1шт.

53

KHJ18020

HOSE

Nylon

1шт.

54

NSS

NOT SOLD SEPARAT

Hose Assy, Incl 53

1шт.

55

KHJ2145

HOSE

Nylon

1шт.

56

150933A1

ELBOW

45 deg, Incl 57

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

60

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 deg, Incl 61

3шт.

61

154475A1

O-RING

3шт.

62

157584A1

ELBOW

Incl 63

1шт.

63

154475A1

O-RING

1шт.

71

150496A1

MOUNTING CLIP

BAND, HARNESS

9шт.

86

KHJ2440

HOSE

Nylon

1шт.

89

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 90

1шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

93

NSS

NOT SOLD SEPARAT

Hose Assy, Incl 94 - 95

1шт.

94

KHJ24420

HYDRAULIC HOSE

1шт.

95

KHJ2167

HOSE

1шт.

96

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 deg, Incl 97

2шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

98

KHJ2773

TEE

Incl 99

1шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.
