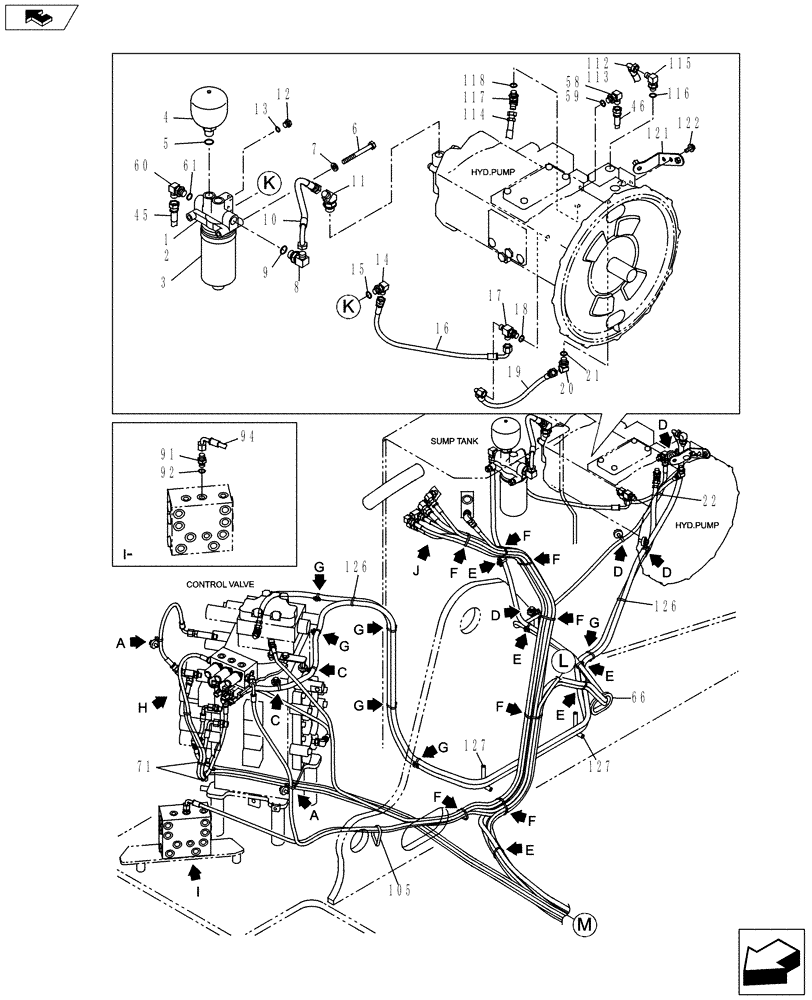

Запчасти Case CX235C SR (35.357.01[01]) - PILOT PRESS AND RETURN LINE (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Accumulator, Incl 2 - 5

1шт.

2

KHJ17720

FILTER HEAD

Manifold, Incl 3

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

Element, Oil Filter

1шт.

4

KHJ2359

ACCUMULATOR

Incl 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

157935A1

ELBOW

Incl 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ1388

HYDRAULIC HOSE,9.52 mm ID x 320.00 mm

1шт.

11

KHJ1254

ELBOW

1шт.

12

159002A1

PLUG

Incl 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 deg, Incl 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

16

KHJ2343

HOSE

Nylon

1шт.

17

159497A1

TEE

Incl 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

19

KHJ2084

HOSE

Nylon

1шт.

20

150933A1

ELBOW

45 deg, Incl 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

22

150496A1

MOUNTING CLIP

Band, Harness

1шт.

45

KHJ26430

HOSE

1шт.

46

KHJ2812

HOSE,4100.00 mm

1шт.

58

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 59

2шт.

59

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

60

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

90 deg, Incl 61

3шт.

61

154475A1

O-RING

3шт.

66

KRH1504

GROMMET

Rubber

1шт.

71

150496A1

MOUNTING CLIP

9шт.

91

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 92

1шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

94

KHJ24420

HYDRAULIC HOSE

1шт.

105

150071A1

MOUNTING CLIP

1шт.

112

NSS

NOT SOLD SEPARAT

Hose Set, Incl 113 - 114

1шт.

113

KHJ26450

HYDRAULIC HOSE

1шт.

114

KHJ26440

HYDRAULIC HOSE

1шт.

115

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 deg, Incl 116

1шт.

116

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

117

150933A1

ELBOW

45 deg, Incl 118

1шт.

118

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

121

KRJ31280

BRACKET

1шт.

122

166350A1

BOLT

2шт.

126

150496A1

MOUNTING CLIP

Band, Harness

8шт.

127

KHH13620

HOSE

Vinyl L100

2шт.
