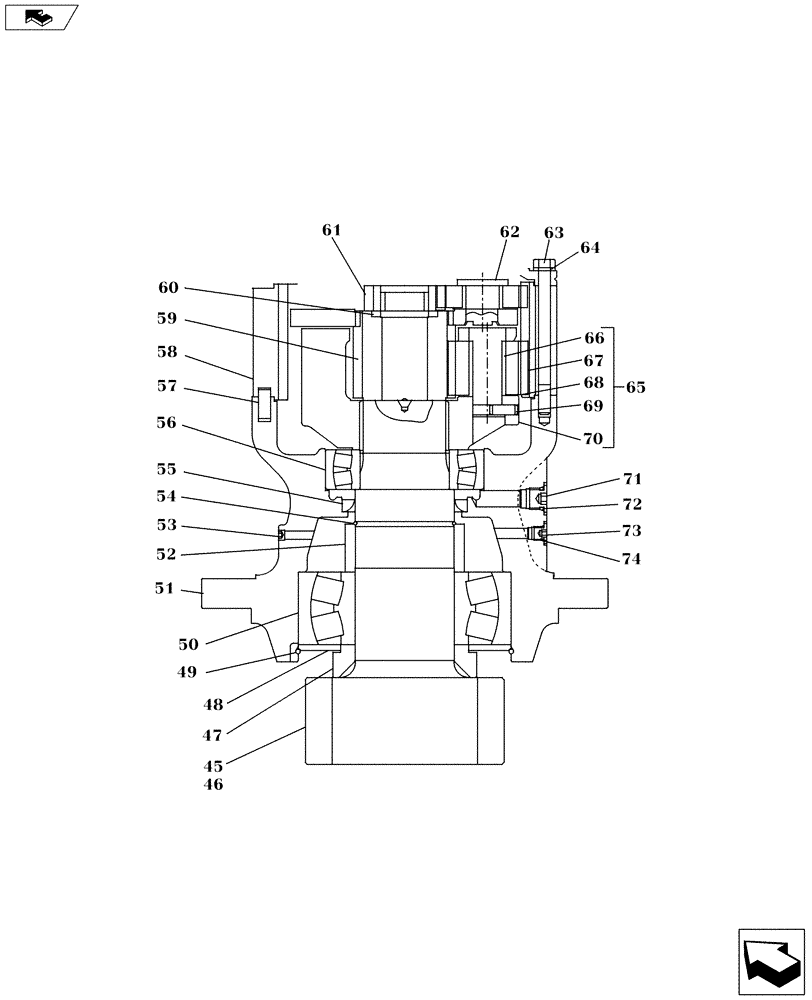

Запчасти Case CX235C SR (35.352.03[02]) - SWING REDUCTION UNIT - COMPONENTS (35) - HYDRAULIC SYSTEMS

0

KRC10510

HYDRAULIC MOTOR

1шт.

0

KRC10510R

REMAN-MOTO REDUCTION

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

0

KRC10510C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

45

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

46

LB011740

SHAFT

1шт.

47

160548A1

COLLAR

1шт.

48

156356A1

PLATE

1шт.

49

155685A1

RING, SNAP

RING SNAP

1шт.

50

156157A1

BEARING, ROLLER,110mm ID x 215mm OD x 73mm W

Spherical, 110X215X73

1шт.

51

LW005020

HOUSING

1шт.

52

LH00337

COLLAR

1шт.

53

LK00053

PLUG

1шт.

54

155686A1

RING, SNAP

RING SNAP

1шт.

55

155107A1

OIL SEAL

Oil

1шт.

56

160611A1

BEARING, ROLLER,90mm ID x 160mm OD x 40mm W

Spherical, 90X160X40

1шт.

57

155621A1

COTTER PIN

Spl

4шт.

58

LC00221

RING GEAR

1шт.

59

160520A1

GEAR

Spl

1шт.

60

160047A1

PLATE, THRUST

1шт.

61

LC00222

SUN GEAR

1шт.

62

LS00222

HOLDER

1шт.

63

102R012Y150R

BOLT

16шт.

64

892-10012

LOCK WASHER,M12

Spring

16шт.

65

168437A1

HOLDER

Gear, Planetary

1шт.

66

LB00758

SHAFT

3шт.

67

LC00149

PLANETARY GEAR

3шт.

68

155383A1

WASHER, THRUST

Plate

3шт.

69

LA00068

DOWEL

3шт.

70

LS00190

HOLDER

1шт.

71

160903A1

CAP

1шт.

72

154487A1

O-RING

1шт.

73

160306A1

CAP

1шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
