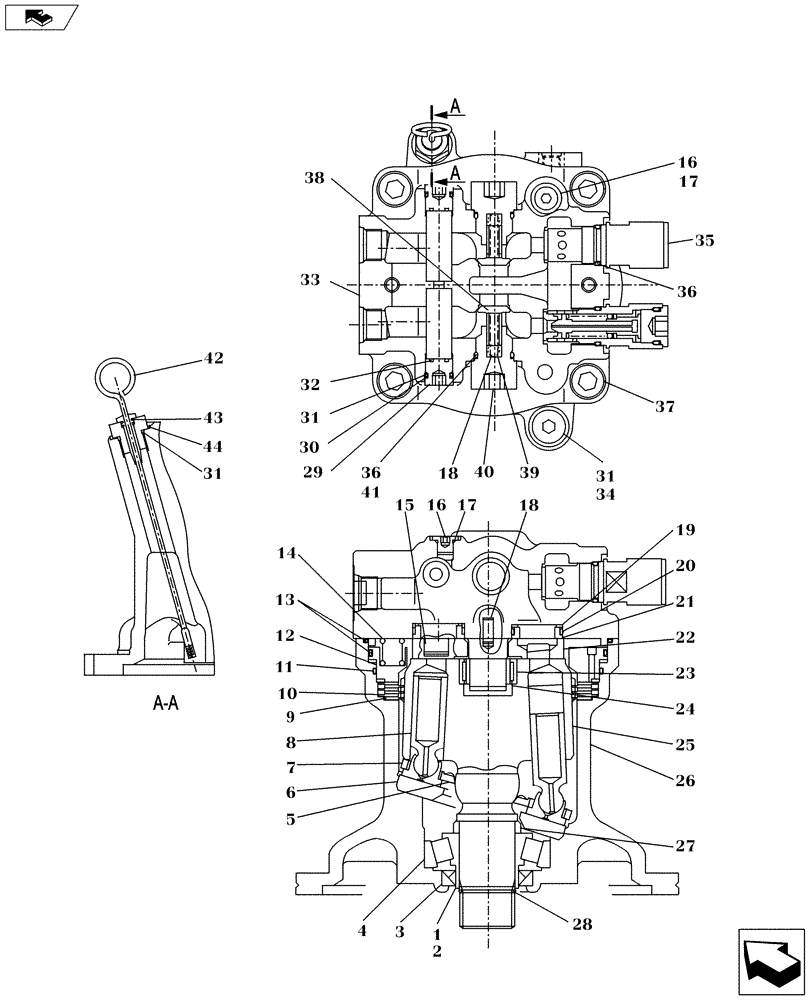

Запчасти Case CX235C SR (35.352.03[01]) - SWING REDUCTION UNIT - COMPONENTS (35) - HYDRAULIC SYSTEMS

0

KRC10510

HYDRAULIC MOTOR

1шт.

0

KRC10510R

REMAN-MOTO REDUCTION

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

0

KRC10510C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

2

155620A1

SPACER

1шт.

3

155106A1

OIL SEAL

Oil

1шт.

4

156133A1

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

Roller, Tapered, SHI LTM0129

1шт.

5

156080A1

SPRING

Spl

1шт.

6

155616A1

PLATE

Spl

1шт.

7

155617A1

PLATE

Return

1шт.

8

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

9шт.

9

155619A1

PLATE

Friction

3шт.

10

155618A1

PLATE

Mating

3шт.

11

155198A1

O-RING

1шт.

12

LPM0116

PISTON

1шт.

13

155199A1

O-RING

2шт.

14

156082A1

SPRING

Spl

20шт.

15

LJ00723

PISTON

2шт.

16

160306A1

CAP

3шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

3шт.

18

160101A1

COTTER PIN

Spl

2шт.

19

LG00337

SPRING

4шт.

20

LE00776

RING

4шт.

21

LB00544

BUSHING

4шт.

22

LR014920

PLATE

Spl

1шт.

23

156134A1

NEEDLE BEARING,Needle, 30mm ID x 45mm OD x 20mm W

1шт.

24

155614A1

RING, LOCKING

RING, LOCK

1шт.

25

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

26

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

27

165745A1

COLLAR

1шт.

28

155613A1

RING, LOCKING

RING, LOCK

1шт.

29

LNM0426

VALVE POPPET

2шт.

30

166176A1

BACK-UP RING

2шт.

31

154487A1

O-RING

4шт.

32

154471A1

O-RING

2шт.

33

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

34

160903A1

CAP

1шт.

35

LJ015420

VALVE

2шт.

36

154515A1

O-RING

4шт.

37

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

M16X60 12.9 PHC

4шт.

38

155944A1

PLUNGER

Valve, Check

2шт.

39

156079A1

SPRING

Spl

2шт.

40

156305A1

CAP

2шт.

41

153991A1

BACK-UP RING

2шт.

42

KRC10030

DIPSTICK

1шт.

43

155201A1

O-RING

1шт.

44

LR00895

CAP

1шт.
