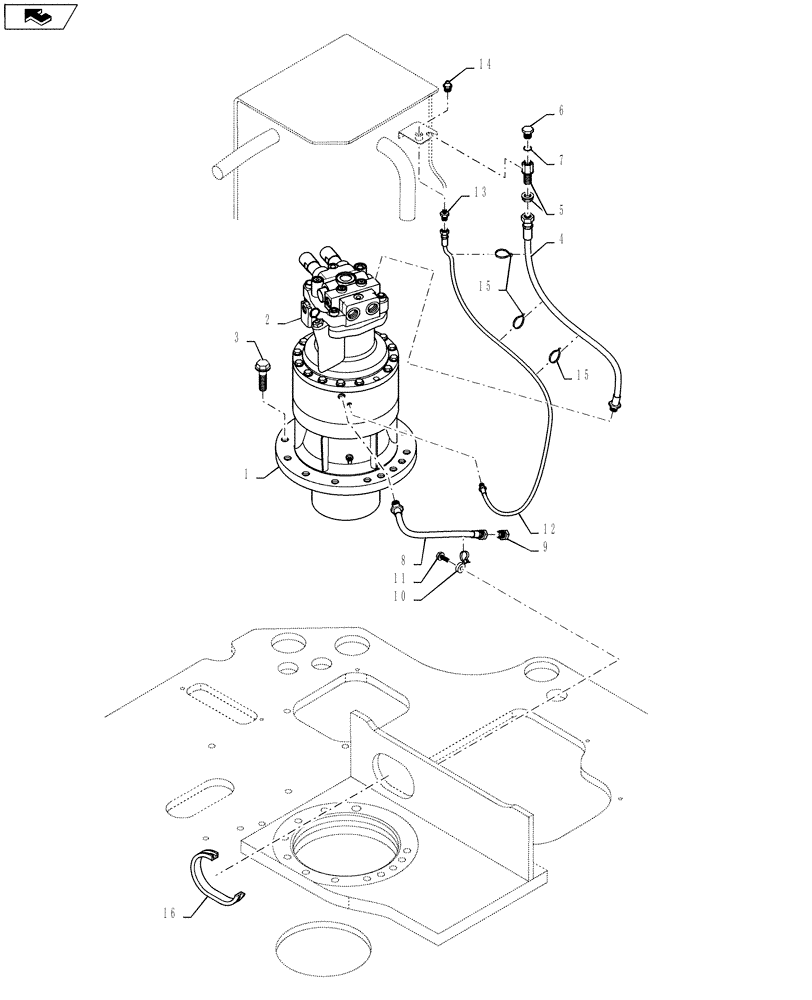

Запчасти Case CX235C SR (35.352.02) - MOUNTING - SWING MOTOR (35) - HYDRAULIC SYSTEMS

1

KRC10510

HYDRAULIC MOTOR

1шт.

1

KRC10510R

REMAN-MOTO REDUCTION

CX235C SR CRAWLER EXCAVATOR - TIER 4 (NA) (3/12-)

1шт.

1

KRC10510C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

2

LJ015420

VALVE

1шт.

3

166354A1

BOLT,Sems, M20 x 75mm

11шт.

4

KRC10370

HYDRAULIC HOSE

1шт.

5

KHJ1079

ADAPTER

1шт.

6

159085A1

PLUG

1шт.

7

154487A1

O-RING

1шт.

8

KRC10340

HYDRAULIC HOSE

1шт.

9

KHP0578

PLUG

1шт.

10

KHR2584

CLAMP

1шт.

11

KHJ1215

BOLT,Spcl

1шт.

12

KHJ23430

HOSE

1шт.

13

KRJ4050

ADAPTER

1шт.

14

153630A1

LUBE NIPPLE

1шт.

15

150496A1

MOUNTING CLIP

3шт.

16

KRH10470

GROMMET

1шт.

17

158955A1

HEADED PIN

Not Shown

1шт.
