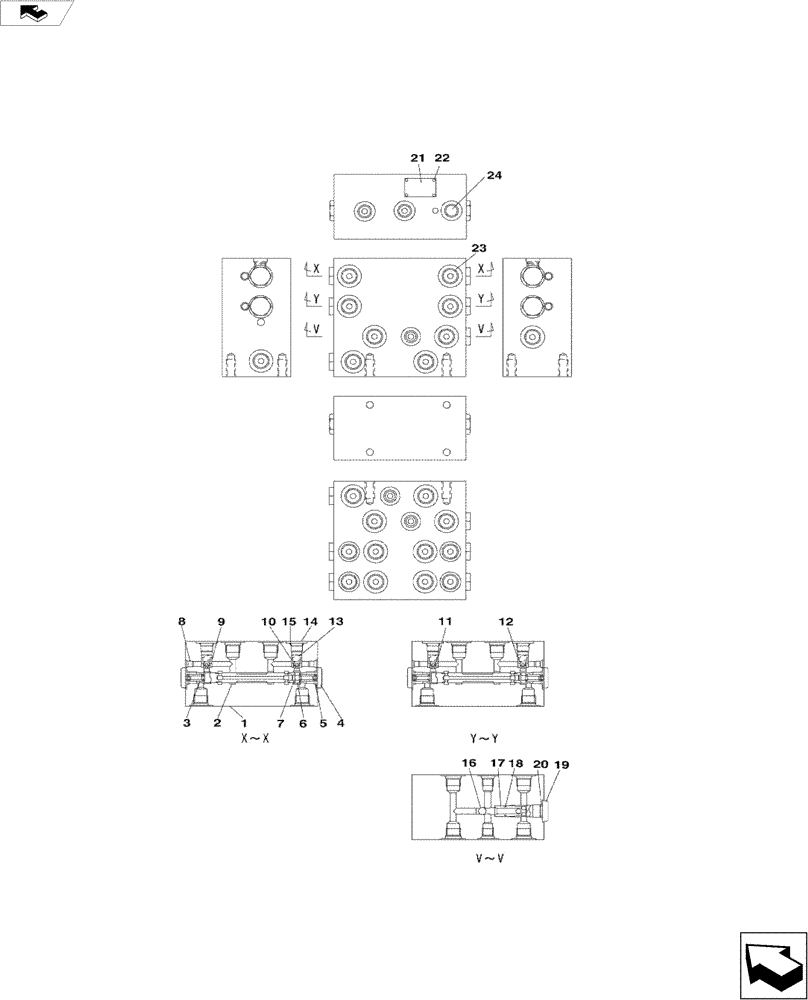

Запчасти Case CX235C SR (35.350.11) - CUSHION VALVE (35) - HYDRAULIC SYSTEMS

0

KRJ30010

VALVE SECTION

Incl 3 - 7, 9 - 20, 22 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

2

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

3

160256A1

SPRING

4шт.

4

160073A1

PLUG

4шт.

5

154474A1

O-RING

4шт.

6

160072A1

SCREW

Cap

2шт.

7

154446A1

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

6шт.

9

LJ017930

CHECK VALVE

1шт.

10

LJ014390

CHECK VALVE

1шт.

11

LJ014400

CHECK VALVE

1шт.

12

LJ014390

CHECK VALVE

1шт.

13

LG005960

COMPRESSION SPRING

4шт.

14

LK005550

PLUG

4шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

4шт.

16

LB011510

BALL

Steel

2шт.

17

LR018180

VALVE SEAT

2шт.

18

154462A1

O-RING

2шт.

19

LK00195

PLUG

2шт.

20

154475A1

O-RING

2шт.

21

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

22

LV000540

SCREW

2шт.

23

LZ010680

SEAL KIT

Incl 7, 15, 18, 20, 24

1шт.

24

154474A1

O-RING

4шт.
