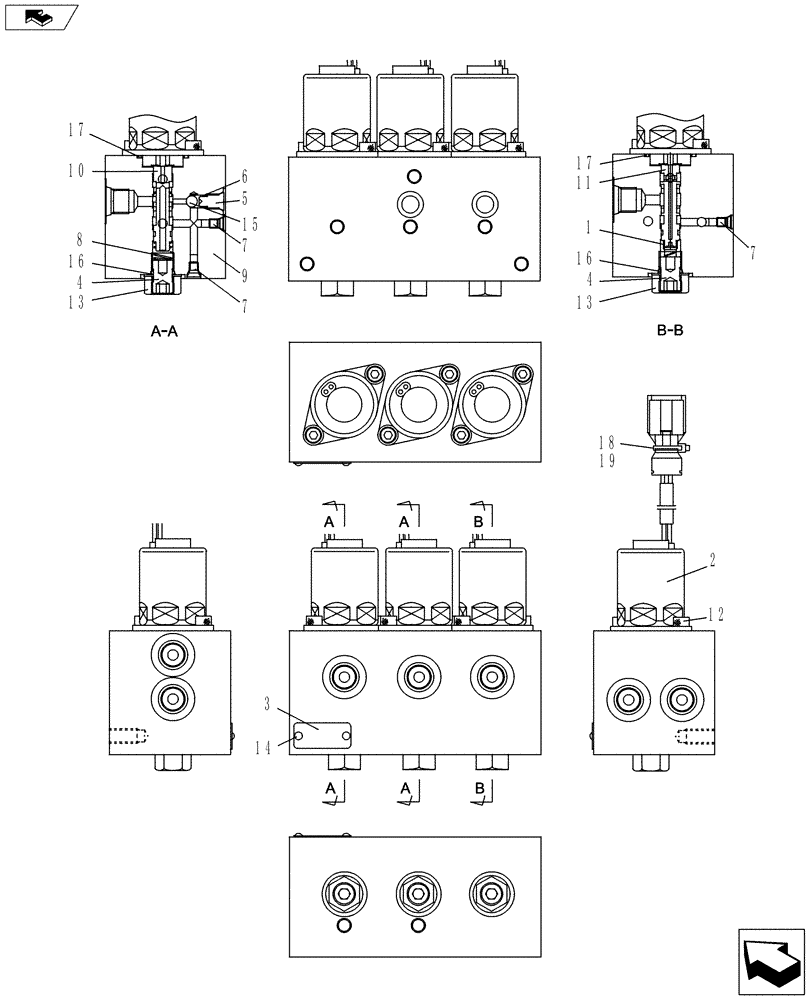

Запчасти Case CX235C SR (35.350.08) - REDUCING VALVE (35) - HYDRAULIC SYSTEMS

0

KHJ23870

VALVE

Incl 1 - 2, 9 - 10, 18 - 24

1шт.

1

LG007370

COMPRESSION SPRING

1шт.

2

LL00080

SOLENOID

Incl 9

3шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

3шт.

4

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

3шт.

5

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

3шт.

6

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

6шт.

7

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

6шт.

8

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

9

108R008Y016N

BOLT

2шт.

10

LV000680

SCREW

3шт.

11

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

12

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

13

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

5шт.

14

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

15

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

16

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

2шт.

17

NSS

NOT SOLD SEPARAT

No Longer Included in BOM, Remove From Art

1шт.

18

LA00690

BOLT,Hex Skt Hd

6шт.

19

174R012SR

JAM NUT

3шт.

20

LA00769

RIVET

Not Shown

2шт.

21

154463A1

O-RING

Not Shown

3шт.

22

LE018820

O-RING

Not Shown

3шт.

23

168246A1

HOSE CLIP

Not Shown

1шт.

24

168247A1

HOSE CLIP

Not Shown

1шт.
