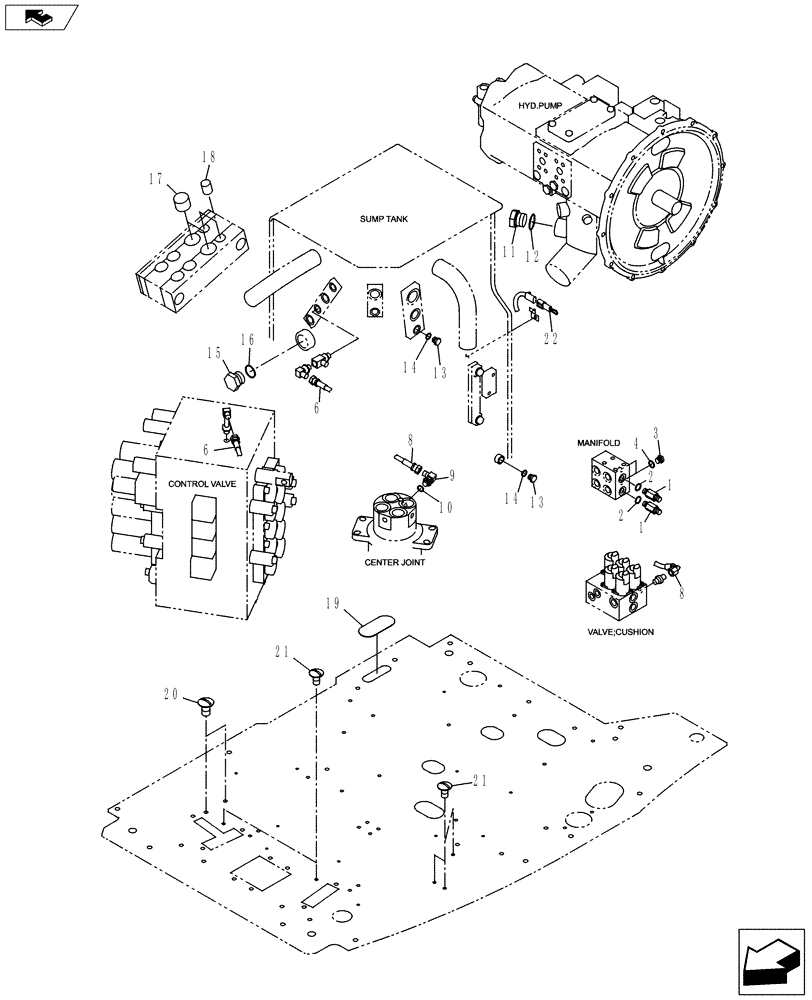

Запчасти Case CX235C SR (35.350.07) - HYDRAULIC SYSTEM - PLUG STANDARD (35) - HYDRAULIC SYSTEMS

1

162554A1

FITTING

lg

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

3

159002A1

PLUG

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

6

KHJ2076

HOSE,6mm ID x 2750mm L

Nylon

1шт.

8

KHJ25400

HOSE

Nylon

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

90 deg

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

11

162659A1

PLUG

Hex

1шт.

12

154523A1

O-RING

1шт.

13

159002A1

PLUG

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

2шт.

15

159085A1

PLUG

1шт.

16

154487A1

O-RING

1шт.

17

KRJ31960

SEAL

2шт.

18

KRJ31970

SEAL

2шт.

19

KHJ25550

GROMMET

1шт.

20

KHJ15060

CAP

2шт.

21

KHJ15080

CAP

5шт.

22

KHR16740

WIRE HARNESS

1шт.

23

162659A1

PLUG

Not Shown

1шт.

24

154523A1

O-RING

Not Shown

1шт.
