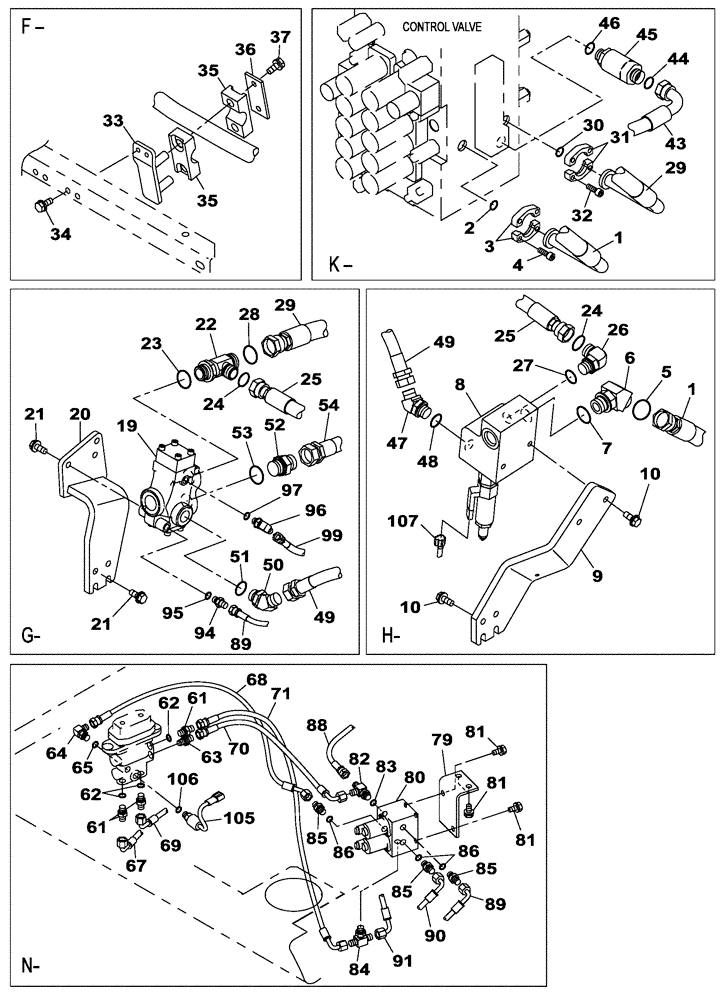

Запчасти Case CX210C NLC (35.322.02[03]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (35) - HYDRAULIC SYSTEMS

1

KRJ29910

HYDRAULIC HOSE

Inc. 2

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

Inc. 5

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ11370

ELBOW

Inc. 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ22630

SAFETY VALVE

1шт.

9

KRJ29360

BRACKET

1шт.

10

166352A1

BOLT

6шт.

19

KHJ10420

VALVE SECTION

1шт.

21

166352A1

BOLT

6шт.

22

KHJ22660

TEE

Inc. 23

1шт.

23

154523A1

O-RING

1шт.

24

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

25

KRJ29920

HYDRAULIC HOSE

1шт.

26

KHJ1804

ELBOW

Inc. 27

1шт.

27

154503A1

O-RING

1шт.

28

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

29

KRJ29930

HYDRAULIC HOSE

Inc. 30

1шт.

30

155211A1

O-RING

1шт.

31

153459A1

FLANGE

2шт.

32

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

33

KBJ15670

BRACKET

1шт.

34

166052A1

BOLT

2шт.

35

KRJ11450

HOSE CLIP

2шт.

36

KRJ10800

PLATE

1шт.

37

166052A1

BOLT

2шт.

43

KRJ16540

HYDRAULIC HOSE,19.00 mm ID x 1130.00 mm

Inc. 44

1шт.

44

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

45

KHJ10480

VALVE SECTION

Inc. 46

1шт.

46

154503A1

O-RING

1шт.

47

157586A1

ELBOW

Inc. 48

1шт.

48

154503A1

O-RING

1шт.

49

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

50

157586A1

ELBOW

Inc. 51

1шт.

51

154503A1

O-RING

1шт.

52

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Inc. 53

1шт.

53

154523A1

O-RING

1шт.

54

KRJ16340

HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm

1шт.

61

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Inc. 62

3шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

161841A1

HYD CONNECTOR

1шт.

64

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Inc. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

KHJ2165

HOSE

1шт.

68

KHJ14650

HYDRAULIC HOSE

1шт.

69

KHJ2165

HOSE

1шт.

70

KHJ2085

HOSE

1шт.

71

KHJ2194

HOSE,6.3mm ID x 650mm L

1шт.

79

KHJ14680

SUPPORT

1шт.

80

KHJ14000

VALVE SECTION

1шт.

81

166351A1

BOLT,Sems, M10 x 20mm

4шт.

82

159497A1

TEE

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

Inc. 84

1шт.

84

167321A1

TEE

1шт.

85

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Inc. 86

3шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

KHJ2036

HOSE

1шт.

89

KHJ17630

HOSE

1шт.

90

KHJ12240

HOSE

1шт.

91

KHJ23570

FLEXIBLE HOSE

1шт.

94

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

94

162554A1

FITTING

Inc. 95

2шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Inc. 97

1шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

KHJ16890

HOSE

1шт.

105

KHR21490

PRESSURE SWITCH

Inc. 106

1шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

KHR25520

WIRE HARNESS

1шт.
