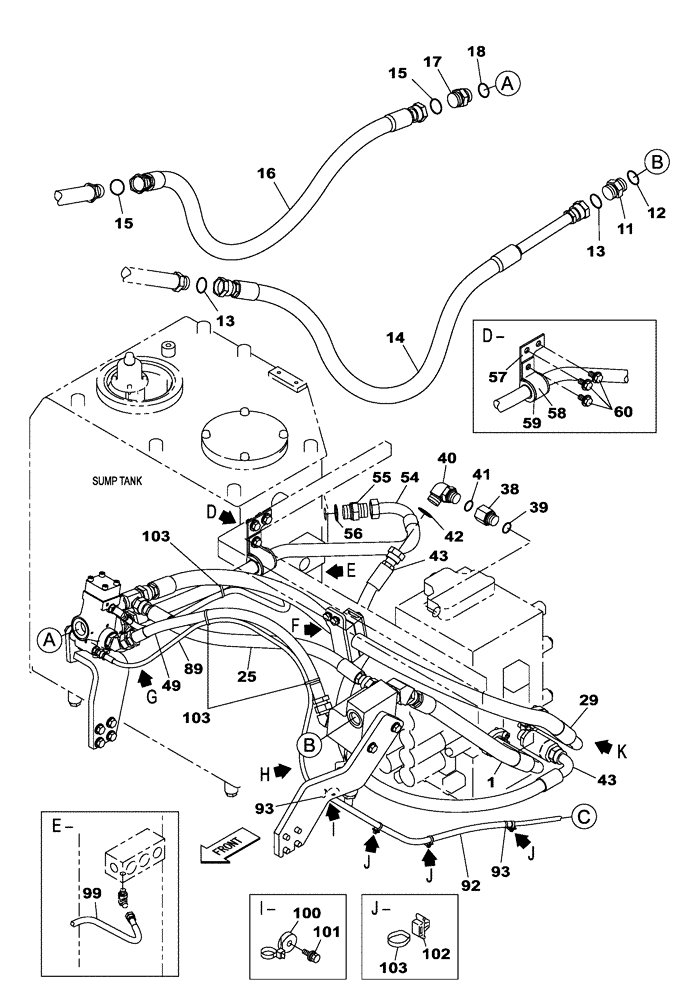

Запчасти Case CX210C NLC (35.322.02[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (35) - HYDRAULIC SYSTEMS

1

KRJ29910

HYDRAULIC HOSE

1шт.

11

KHJ1349

ADAPTER

Inc. 12 - 13

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

14

KRJ29370

HYDRAULIC HOSE

Inc. 15

1шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

16

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

1шт.

17

KHJ1349

ADAPTER

Inc. 18

1шт.

18

154523A1

O-RING

1шт.

25

KRJ29920

HYDRAULIC HOSE

1шт.

29

KRJ29930

HYDRAULIC HOSE

1шт.

38

159198A1

ADAPTER

Inc. 39

1шт.

39

154503A1

O-RING

1шт.

40

KHJ1804

ELBOW

Inc. 41 - 42

1шт.

41

154503A1

O-RING

1шт.

42

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

43

KRJ16540

HYDRAULIC HOSE,19.00 mm ID x 1130.00 mm

1шт.

49

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

54

KRJ16340

HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm

1шт.

55

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Inc. 56

1шт.

56

154523A1

O-RING

1шт.

57

KRJ16280

SUPPORT

1шт.

58

KBJ11860

SUPPORT

1шт.

59

KHJ2680

COLLAR CLAMP

1шт.

60

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

89

KHJ17630

HOSE

1шт.

92

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1шт.

93

150067A1

MOUNTING CLIP

2шт.

99

KHJ16890

HOSE

1шт.

100

KHR2584

CLAMP

1шт.

101

KHJ1215

BOLT,Spcl

1шт.

102

KHR10220

MOUNTING CLIP

3шт.

103

150496A1

MOUNTING CLIP

8шт.
