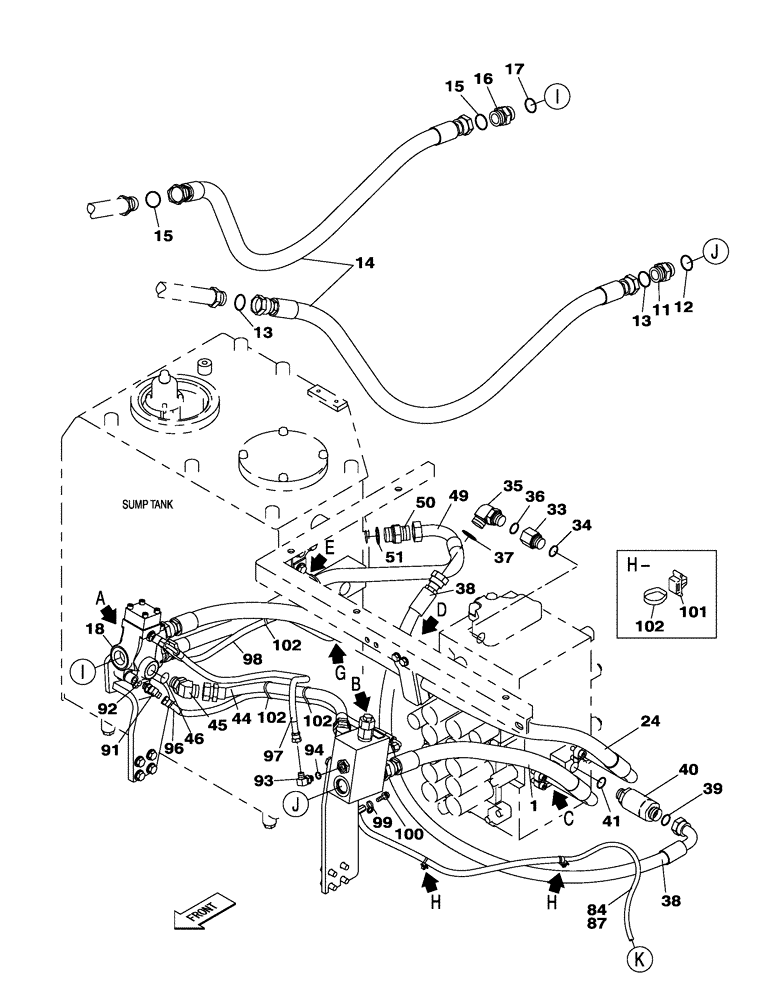

Запчасти Case CX210C NLC (35.322.01[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (35) - HYDRAULIC SYSTEMS

11

KHJ1349

ADAPTER

Inc. 12

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

2шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

16

KHJ1349

ADAPTER

Inc. 17

1шт.

17

154523A1

O-RING

1шт.

18

KHJ10420

VALVE SECTION

1шт.

24

KRJ29930

HYDRAULIC HOSE

1550 mm

1шт.

25

155211A1

O-RING

1шт.

33

159198A1

ADAPTER

Inc. 34

1шт.

34

154503A1

O-RING

1шт.

35

KHJ1804

ELBOW

Inc. 36

1шт.

36

154503A1

O-RING

1шт.

37

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

38

KRJ16540

HYDRAULIC HOSE,19.00 mm ID x 1130.00 mm

1шт.

39

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

40

KHJ10480

VALVE SECTION

Inc. 41

1шт.

41

154503A1

O-RING

1шт.

44

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

45

157586A1

ELBOW

Inc. 46

1шт.

46

154503A1

O-RING

1шт.

49

KRJ16340

HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm

1шт.

50

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

1шт.

51

154523A1

O-RING

1шт.

84

KHJ18110

HOSE

4000 mm

1шт.

87

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1000 mm

1шт.

91

150933A1

ELBOW

Inc. 92

1шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Inc. 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

KHJ16850

HOSE

800 mm

1шт.

97

KHJ16870

HOSE

1000 mm

1шт.

98

KHJ16890

HOSE

900 mm

1шт.

99

KHR2584

CLAMP

1шт.

100

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

101

KHR10220

MOUNTING CLIP

2шт.

102

150496A1

MOUNTING CLIP

250 mm

7шт.
