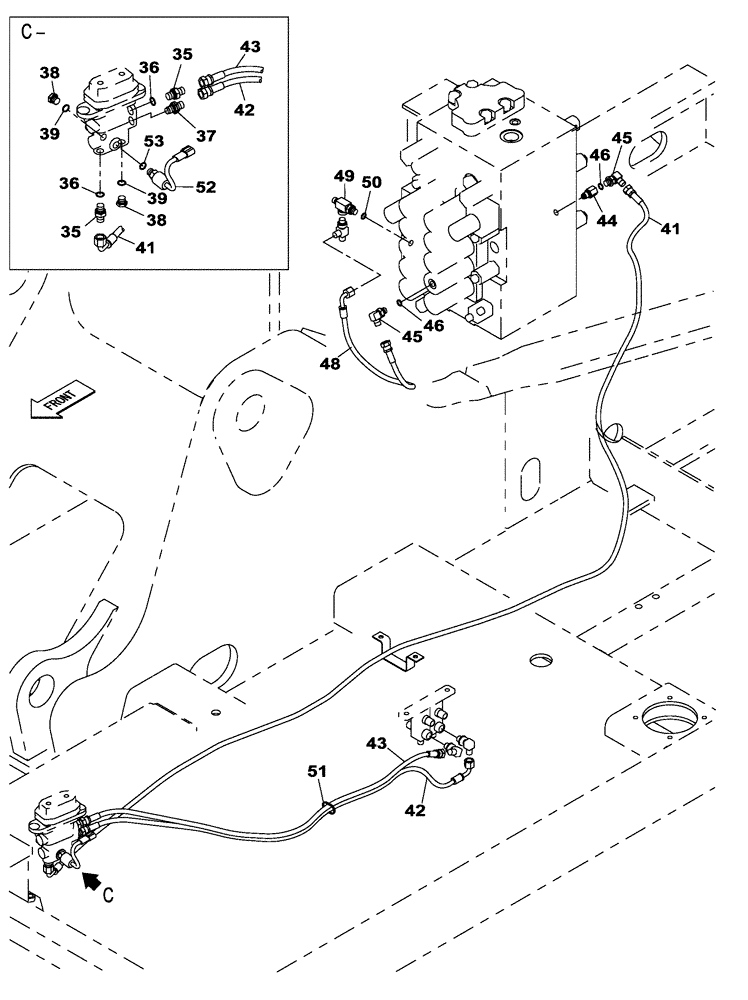

Запчасти Case CX210C NLC (35.310.08[02]) - HYD. LINE - SINGLE ACTING CIRCUIT - OPTIONAL (35) - HYDRAULIC SYSTEMS

35

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Inc. 36

2шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

161841A1

HYD CONNECTOR

1шт.

38

159002A1

PLUG

Inc. 39

2шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

KHJ2165

HOSE

2900 mm

1шт.

42

KHJ2092

HOSE

1000 mm

1шт.

43

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

44

KHJ25100

STUD

1шт.

45

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Inc. 46

1шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

KHJ2309

HOSE

550 mm

1шт.

49

167666A1

FITTING

Inc. 50

1шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

51

150496A1

MOUNTING CLIP

250 mm

1шт.

52

KHR21490

PRESSURE SWITCH

Inc. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
