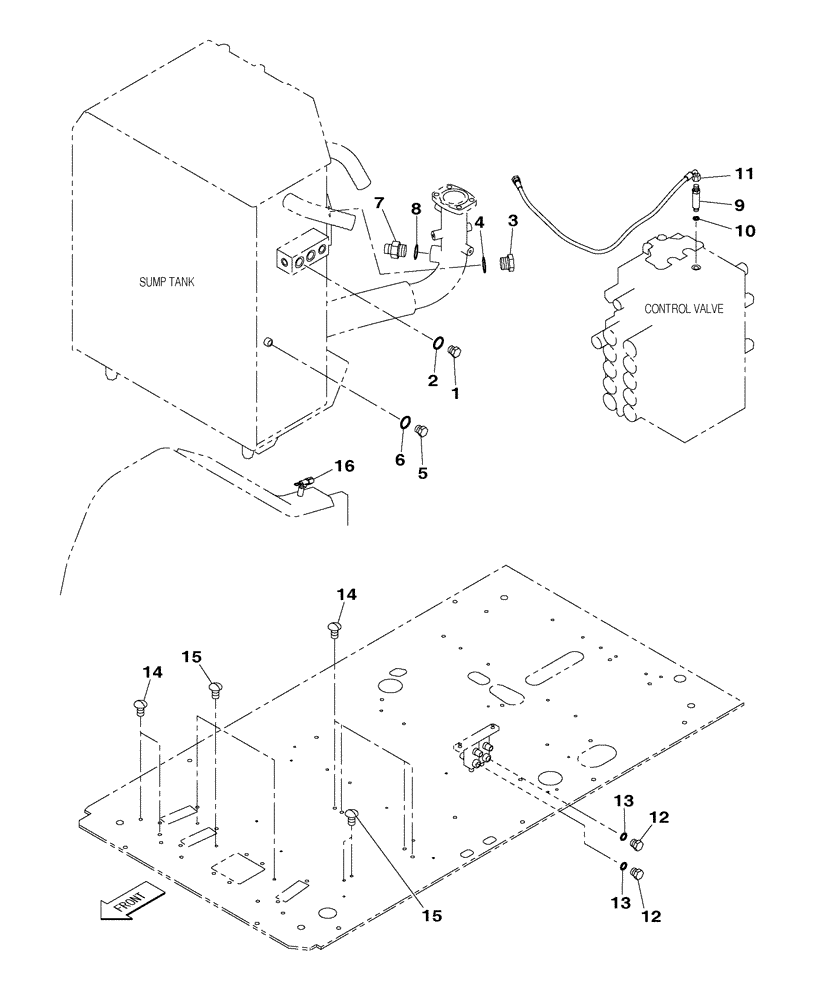

Запчасти Case CX210C NLC (35.310.02) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF - STANDARD (35) - HYDRAULIC SYSTEMS

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Inc. 2

1шт.

2

154503A1

O-RING

1шт.

3

KAJ2420

HYDRAULIC HOSE,19.00 mm ID x 570.00 mm

1шт.

4

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Inc. 5

1шт.

5

154503A1

O-RING

1шт.

6

157585A1

ELBOW

Inc. 7

1шт.

7

154487A1

O-RING

1шт.

8

163805A1

HOSE ASSY.

900 mm (35-12 in)

1шт.

9

KHJ1157

TEE

Inc. 10

1шт.

10

154475A1

O-RING

1шт.

11

KHJ11140

HYDRAULIC HOSE,12.70 mm ID x 550.00 mm

1шт.

12

157585A1

ELBOW

Inc. 13

1шт.

13

154487A1

O-RING

1шт.
