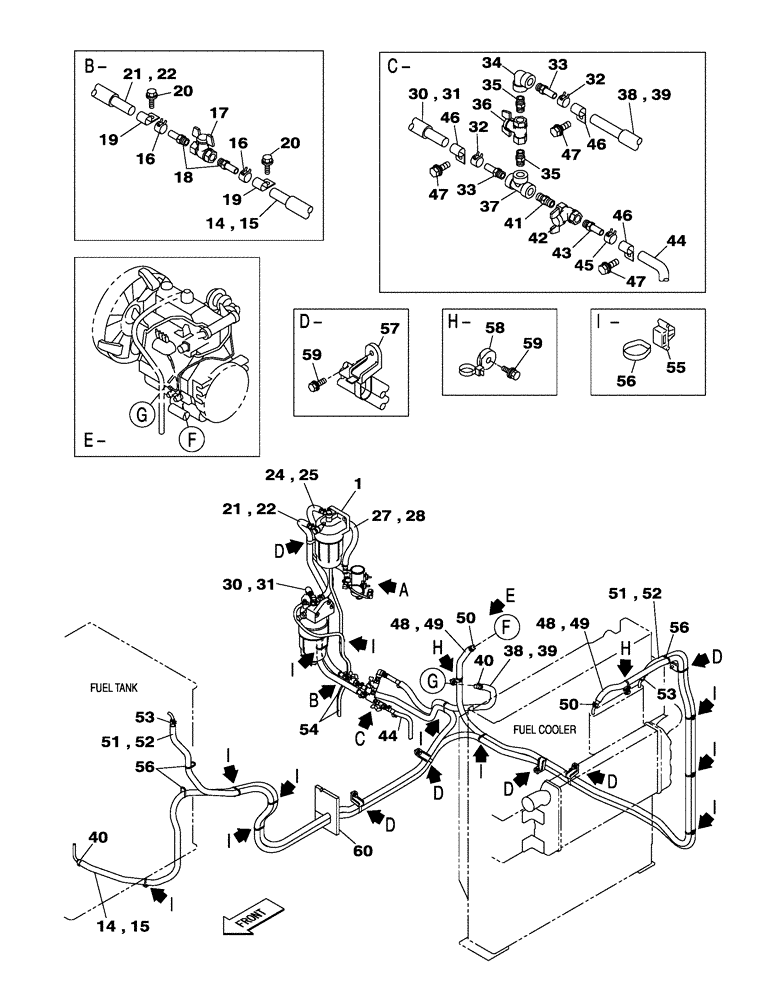

Запчасти Case CX210C NLC (10.218.01[01]) - FUEL SYSTEM (10) - ENGINE

1

KHH12020

FILTER ASSY

See Figure(s) 10.206.02

1шт.

14

KHH0433

FUEL HOSE

1шт.

15

162933A1

PLASTIC-RUBBER TUBE

3400 mm

1шт.

16

KHH0405

MOUNTING CLIP

2шт.

17

158923A1

DRAIN VALVE

1шт.

18

157929A1

FITTING

2шт.

19

162148A1

CLIP

2шт.

20

KHJ1215

BOLT,Spcl

M8 x 25

2шт.

21

KHH12510

FUEL HOSE

1шт.

22

158062A1

PLASTIC-RUBBER TUBE

1000 mm

1шт.

24

KHH10610

FUEL HOSE,700.00 mm

1шт.

25

150488A1

PLASTIC-RUBBER TUBE

1шт.

27

KHH11780

FUEL HOSE

850 mm

1шт.

28

158061A1

PLASTIC-RUBBER TUBE

800 mm

1шт.

30

KHH0478

HOSE

1шт.

31

KHR13370

PLASTIC-RUBBER TUBE

700 mm

1шт.

32

KHH0405

MOUNTING CLIP

2шт.

33

157929A1

FITTING

2шт.

34

152218A1

ELBOW

1шт.

35

150847A1

HYD CONNECTOR

2шт.

36

158923A1

DRAIN VALVE

1шт.

37

152135A1

TEE

1шт.

38

KHH0511

FUEL HOSE

1000 mm

1шт.

39

KHR13380

PLASTIC-RUBBER TUBE

900 mm

1шт.

40

KHH0405

MOUNTING CLIP

2шт.

41

150847A1

HYD CONNECTOR

1шт.

42

158923A1

DRAIN VALVE

1шт.

43

157929A1

FITTING

1шт.

44

KHH12360

FUEL HOSE

1шт.

45

KHH0405

MOUNTING CLIP

1шт.

46

162148A1

CLIP

3шт.

47

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

48

KHH14120

HOSE

3400 mm

1шт.

49

162635A1

TUBE

3300 mm

1шт.

50

KHH0405

MOUNTING CLIP

2шт.

51

KHH11550

FUEL HOSE,5000.00 mm

1шт.

52

KHR15920

PLASTIC-RUBBER TUBE

4900 mm

1шт.

53

KHH0405

MOUNTING CLIP

2шт.

54

KHH12170

PLASTIC-RUBBER TUBE

800 mm

2шт.

55

KHR10220

MOUNTING CLIP

11шт.

56

150496A1

MOUNTING CLIP

250 mm

14шт.

57

KHR2581

CLAMP

6шт.

58

KHR2584

CLAMP

2шт.

59

KHJ1215

BOLT,Spcl

M8 x 25

13шт.

60

KRH11970

SEAL

1шт.
