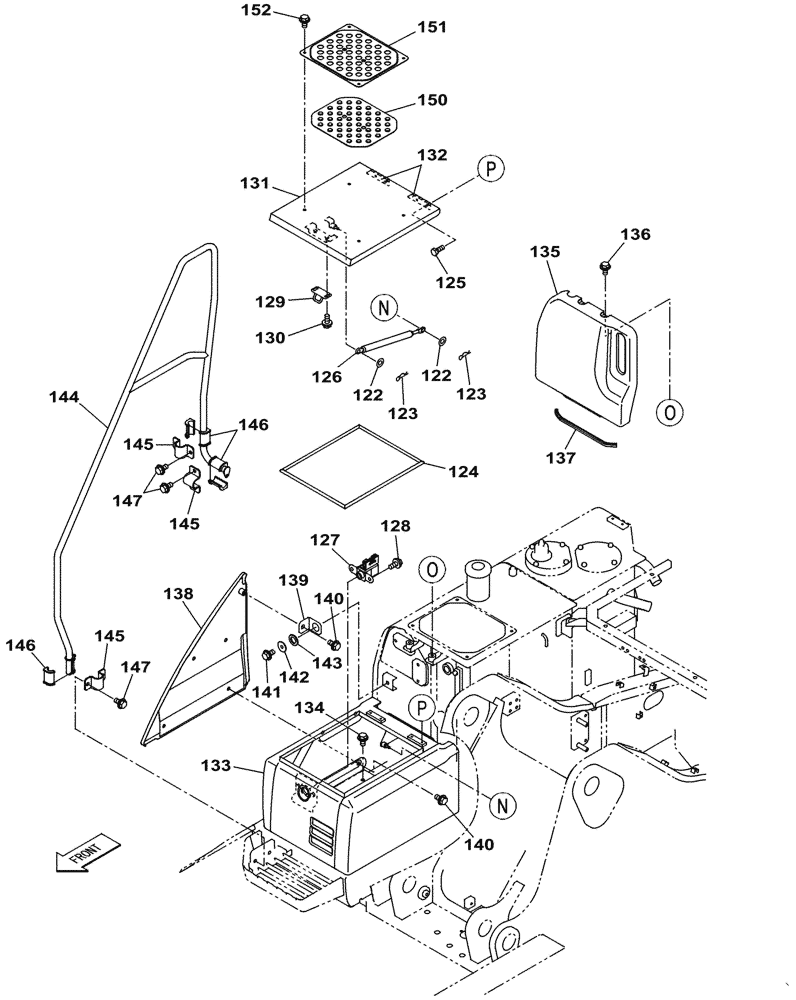

Запчасти Case CX210C NLC (90.100.01[04A]) - HOUSING & COVERS - ASN NCSAJ1253 (90) - PLATFORM, CAB, BODYWORK AND DECALS

122

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

123

153077A1

COTTER PIN

2шт.

124

KRN16040

SEALING STRIP

1шт.

125

KAN2771

BOLT,Spcl

4шт.

126

KHN24400

GAS STRUT

1шт.

127

KHN12730

LOCK

1шт.

128

166351A1

BOLT,Sems, M10 x 20mm

2шт.

129

KHN12740

SUPPORT

1шт.

130

166350A1

BOLT

2шт.

131

KRN12980G1

COVER

1шт.

132

KHN3390

HINGE

2шт.

133

KRN12970G1

COVER

1шт.

134

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

135

KNN10390G1

COVER

1шт.

136

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

137

KRN10750

SEAL PROTECTION

1шт.

138

KHN12710Y2

COVER

1шт.

139

KHN12720

SUPPORT

1шт.

140

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

141

166352A1

BOLT

1шт.

142

162409A1

WASHER

1шт.

143

KHN2061

WASHER

1шт.

144

KHN12681B1

STAY

1шт.

145

KHN12690

COLLAR

3шт.

146

KHN12700

COLLAR

6шт.

147

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

150

KHN10940

RUBBER PAD

2шт.

151

KHN13510B1

COVER

2шт.

152

KHN13540

BOLT,Spcl

8шт.
