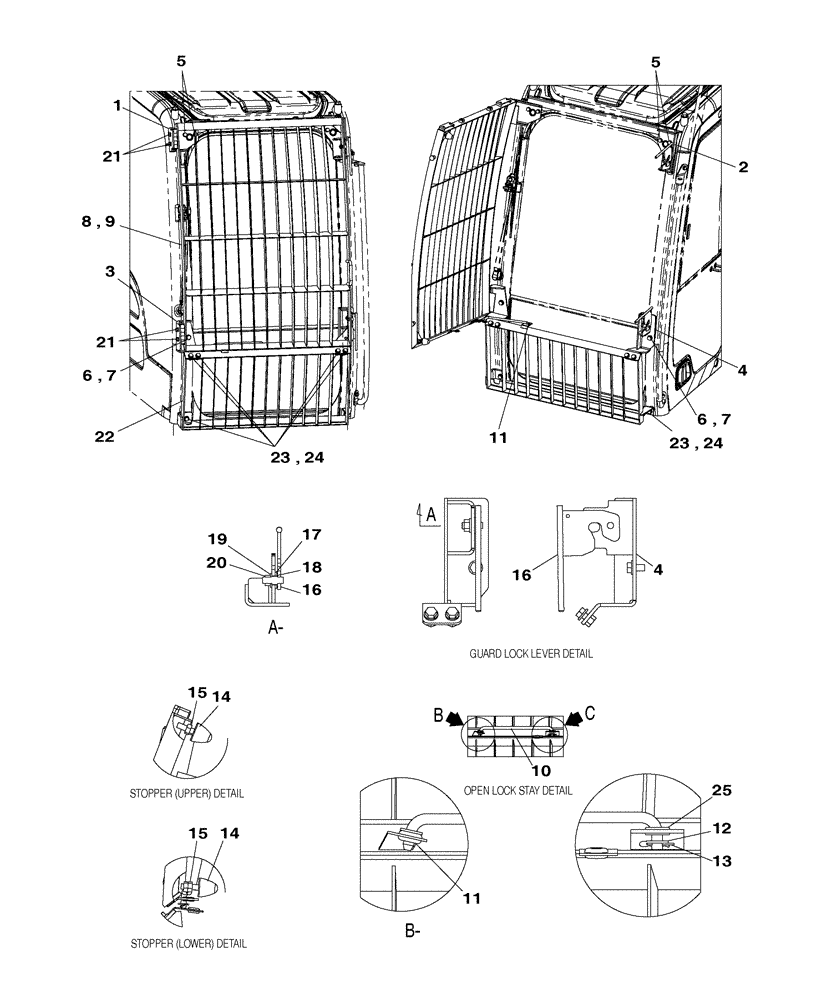

Запчасти Case CX210C NLC (88.100.03) - DIA KIT - CAB GUARD - WINDSHIELD, UPPER AND LOWER (88) - ACCESSORIES

0

KG0HN486-00

CONSTRUCTION DIA

DIA KIT, Windshield, Upper and Lower

1шт.

1

KHN27731

BRACKET

Replaces KHN27730

1шт.

2

KHN27750

BRACKET

1шт.

3

KHN27740

BRACKET

1шт.

4

KHN27760

BRACKET

1шт.

5

166052A1

BOLT

M10 X 25

4шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

7

150811A1

WASHER

2шт.

8

KHN27710

GUARD

Incl 9

1шт.

9

KHN16890

HINGE

2шт.

10

KHN27800

STAY

1шт.

11

KHN16920

GROMMET

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

153181A1

COTTER PIN

1шт.

14

151108A1

STOP

2шт.

15

KBH0446

NUT

2шт.

16

KHN27770

LEVER

2шт.

17

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

18

157560A1

WAVE WASHER

2шт.

19

150811A1

WASHER

2шт.

20

829-1412

NUT,M12, Cl 10.9

2шт.

21

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

4шт.

22

KHN27720

GUARD

1шт.

23

150811A1

WASHER

6шт.

24

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

6шт.

25

KHN20000

GROMMET

1шт.
