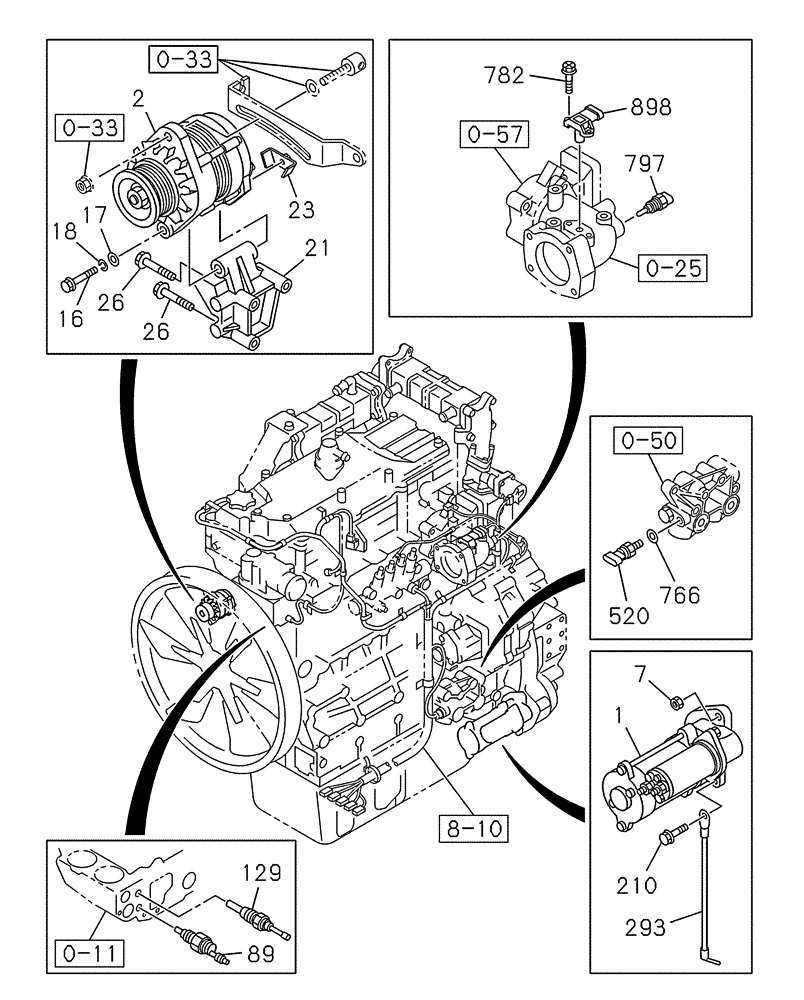

Запчасти Case CX210C NLC (55.201.01[01]) - ELECTRICAL ACCESSORIES - ENGINE (55) - ELECTRICAL SYSTEMS

0-11

Cylinder Head, See Figure(s) 10.101.01 01

1шт.

0-25

Intake Pipe, See Figure(s) 10.254.03

1шт.

0-33

Belt And Ventilator - Fan Guard, See Figure(s) 10.414.01

1шт.

0-50

Oil Cooler - Engine, See Figure(s) 10.408.01

1шт.

0-57

Exhaust Gas Recirculation System, See Figure(s) 10.501.01

1шт.

8-10

Electrical Accessories - Engine, See Figure(s) 55.015.01

1шт.

1

87711539

STARTER MOTOR

See Figure(s) 55.201.02

1шт.

1

87711539R

REMAN-STARTER

CX210C LR CRAWLER EXCAVATOR - TIER 4 (NA) (4/12-)

1шт.

1

87711539C

CORE-STARTER

Return Number

1шт.

2

87709230

ALTERNATOR

See Figure(s) 55.301.01

1шт.

87709230R

REMAN-ALTERNATOR

CX210C LR TIER 4 (4/12-)

1шт.

87709230C

CORE-ALTERNATOR

Return Number

1шт.

7

87597755

NUT

2шт.

16

289045A1

BOLT

1шт.

17

87597767

WASHER

1шт.

18

87597771

WASHER

1шт.

21

87597772

BRACKET

1шт.

23

437982A1

SUPPORT

1шт.

26

87597774

BOLT,Flng, M10 x 80mm

3шт.

89

289737A1

SENSOR

1шт.

129

84389010

SENSOR

Glow Plug

1шт.

210

84387669

BOLT

1шт.

293

289982A1

CABLE

1шт.

520

87597867

SENSOR

Engine Oil Pressure

1шт.

766

426423A1

GASKET

1шт.

782

84387982

BOLT

2шт.

797

87378549

SENSOR

1шт.

898

84388065

SENSOR

Boost Pressure

1шт.
