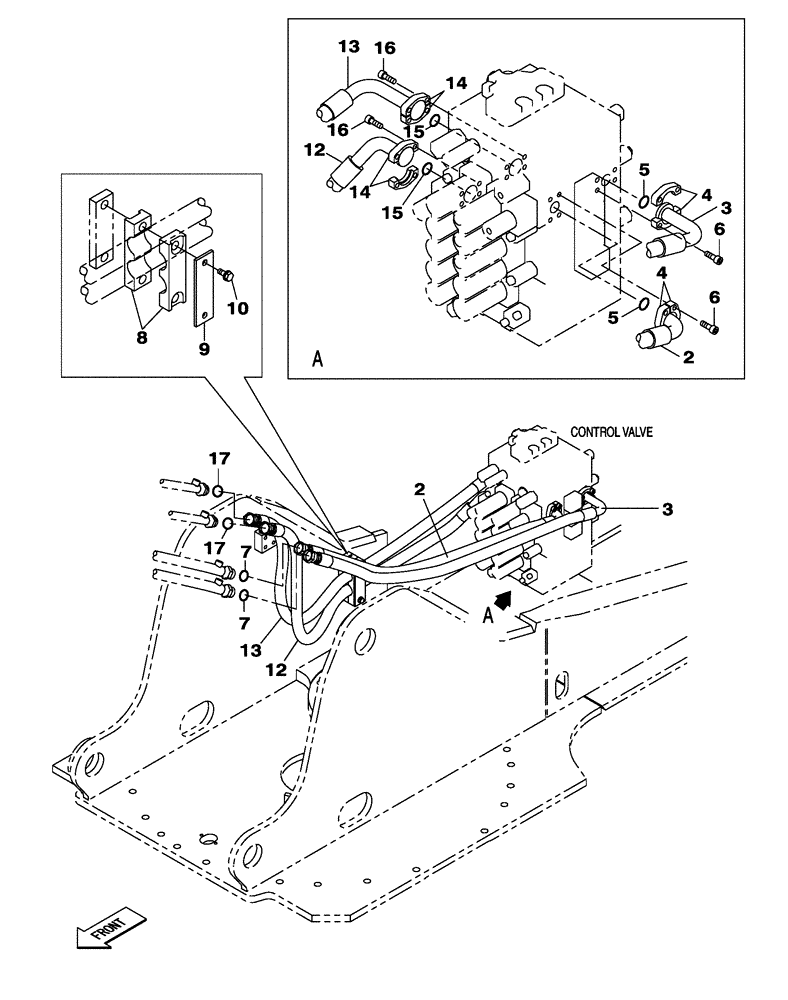

Запчасти Case CX210C NLC (35.737.01) - HYD. LINE - DIPPER AND BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

2

KRJ29870

HYDRAULIC HOSE

1шт.

3

KRJ10841

HYDRAULIC HOSE

1шт.

4

KRJ2682

FLANGE

4шт.

5

155211A1

O-RING

2шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

KBJ14410

HOSE CLAMP

2шт.

9

KRJ10870

PLATE

1шт.

10

166052A1

BOLT

2шт.

12

KRJ29850

HYDRAULIC HOSE

1шт.

13

KRJ29860

HYDRAULIC HOSE

1шт.

14

KRJ2682

FLANGE

4шт.

15

155211A1

O-RING

2шт.

16

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
