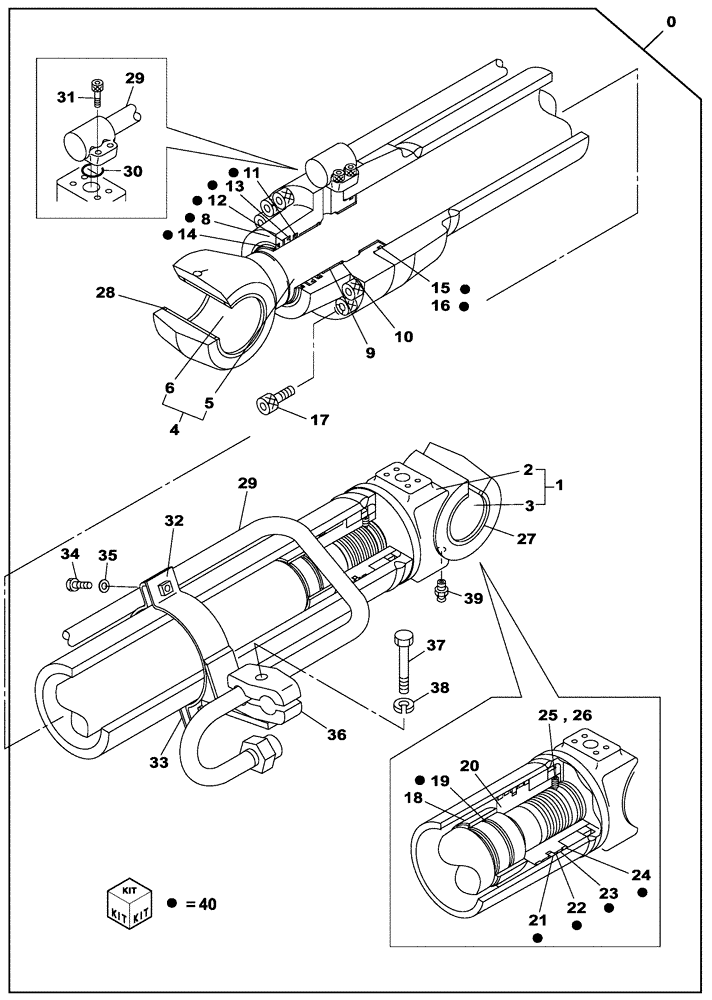

Запчасти Case CX210C NLC (35.736.06) - BOOM CYLINDER - RIGHT - WITH SAFETY VALVE (35) - HYDRAULIC SYSTEMS

0

KRV33021

CYLINDER

Incl 1 - 39

1шт.

0

KRV33021R

REMAN-HYD CYLINDER

CX210C NLC CRAWLER EXCAVATOR - TIER 4 (NA), BOOM CYLINDER, RIGHT, WITH SAFETY VALVE (4/12-)

1шт.

0

KRV33021C

CORE-HYD CYLINDER

Return Number

1шт.

1

LR014070

HYD CYL SLEEVE

Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

KRV2401

SELF LUB RING

1шт.

4

LB014530

PISTON ROD

Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Piston Rod, Incl in 4

1шт.

6

KRV2395

SELF LUB RING

1шт.

8

LU00106

CYLINDER END CAP

1шт.

9

155419A1

BUSHING

1шт.

10

155697A1

RING, SNAP

1шт.

11

LE013140

RING

1шт.

12

LE013150

RING

1шт.

13

155232A1

BACK-UP RING

1шт.

14

LE019440

SHAFT SEAL

1шт.

15

154753A1

O-RING,114.4mm ID x 3.1mm Width

1шт.

16

155234A1

BACK-UP RING

1шт.

17

161059A1

BOLT,Hex Skt, M16 x 70mm, Cl 12.9

12шт.

18

LE013160

BACK-UP RING

1шт.

19

LE00704

SEAL

1шт.

20

LJ014150

PISTON

1шт.

21

155313A1

SEALING RING

1шт.

22

LE00705

BACK-UP RING

2шт.

23

LE013170

BACK-UP RING

2шт.

24

155308A1

RING

2шт.

25

156223A1

SET SCREW

1шт.

26

155977A1

BALL

1шт.

27

160483A1

BACK-UP RING

2шт.

28

160484A1

WIPER SEAL

2шт.

29

LR014060

HYD TUBE

1шт.

30

154528A1

O-RING

1шт.

31

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

32

LD001370

CLAMP BRACKET

1шт.

33

LD00040

CLAMP BRACKET

1шт.

34

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

2шт.

35

156227A1

WASHER

2шт.

36

155701A1

COLLAR

2шт.

37

153910A1

BOLT,High Strength, Hex, M14 x 80mm

1шт.

38

892-16014

LOCK WASHER,M14, Hvy

1шт.

39

153630A1

LUBE NIPPLE

1шт.

40

LZ010930

SEAL KIT

Incl 11 - 16, 19, 21 - 23

1шт.
