(35.359.04[03]) - VALVE ASSY - CONTROL

Запчасти Case CX210C NLC (35.359.04[03]) - VALVE ASSY - CONTROL (35) - HYDRAULIC SYSTEMS

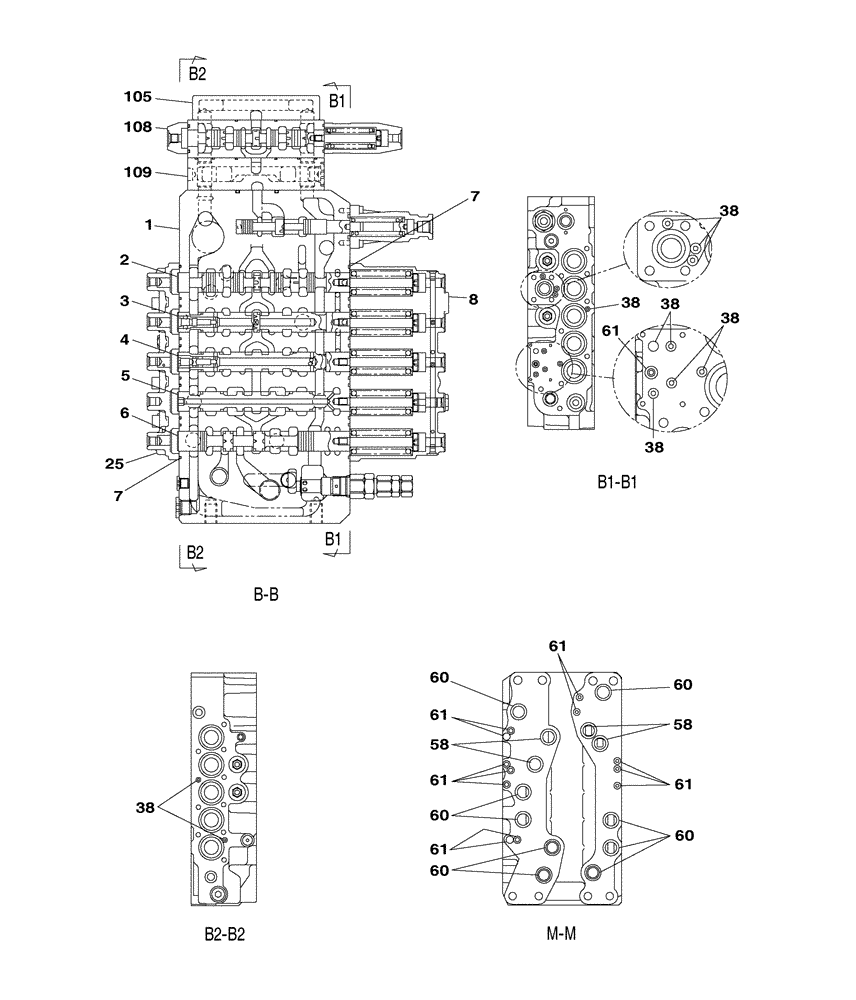

Схема запчастей Case CX210C NLC - (35.359.04[03]) - VALVE ASSY - CONTROL (35) - HYDRAULIC SYSTEMS
61
3
25
61
109
38
38
61
105
60
61
8
60
108
61
38
38
5
2
58
7
60
4
38
60
61
58
7
1
6
60
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

2

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

3

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

4

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

5

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

2шт.

6

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

7

154589A1

O-RING

20шт.

8

LR019330

CAP

1шт.

25

LR019350

CAP

1шт.

38

154447A1

O-RING

17шт.

58

LE019540

O-RING

4шт.

60

LE019550

O-RING

10шт.

61

154463A1

O-RING

13шт.

105

LT001660

END PLATE

1шт.

108

LJ018950

SPOOL

1шт.

109

LJ014770

CONNECTING BLOCK

1шт.
