(35.359.04[02]) - VALVE ASSY - CONTROL

Запчасти Case CX210C NLC (35.359.04[02]) - VALVE ASSY - CONTROL (35) - HYDRAULIC SYSTEMS

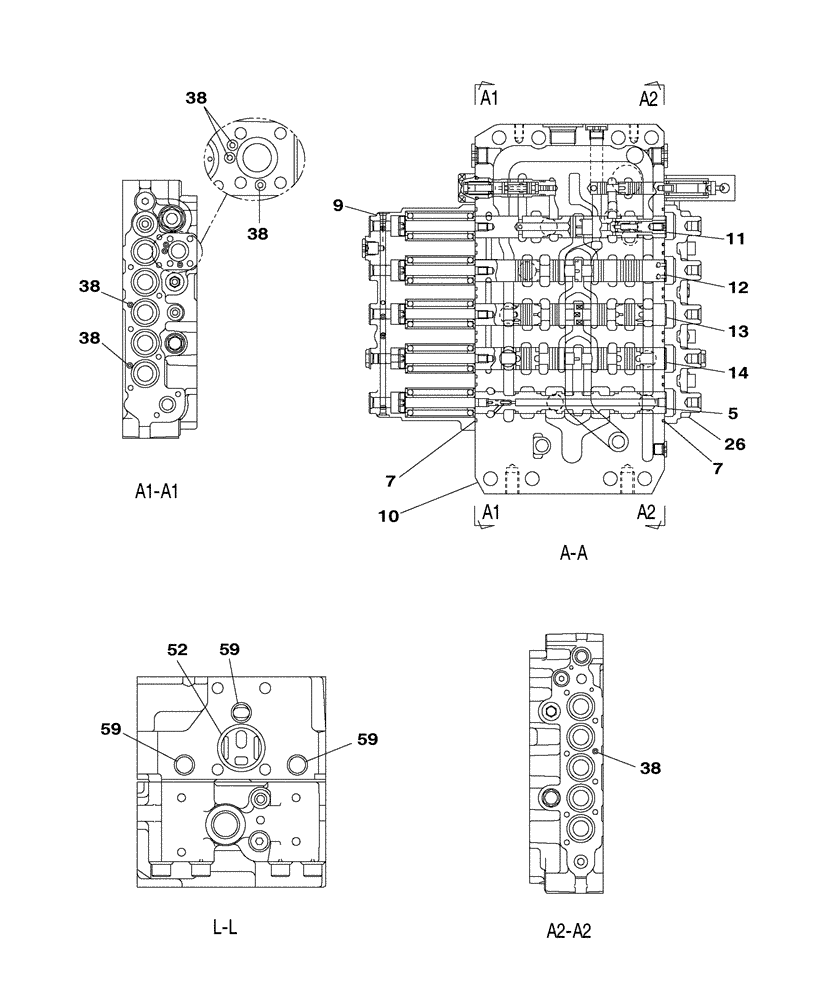

Схема запчастей Case CX210C NLC - (35.359.04[02]) - VALVE ASSY - CONTROL (35) - HYDRAULIC SYSTEMS
38
52
7
38
38
10
7
38
5
9
38
12
59
14
13
11
59
26
59
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

NSS

NOT SOLD SEPARAT

NSS

2шт.

7

154589A1

O-RING

20шт.

9

LR019340

CAP

1шт.

10

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

11

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

12

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

13

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

14

NSS

NOT SOLD SEPARAT

Incl in 0 of Figure 35.359.04(01)

1шт.

26

LR019360

CAP

1шт.

38

154447A1

O-RING

17шт.

52

154625A1

O-RING

1шт.

59

LE012520

O-RING

1шт.
