(CX210C NLC) - CRAWLER EXCAVATOR - TIER 4 (NA) (4/12-8/15)
/
(00) - GENERAL & PICTORIAL INDEX
/

(00.000.00) - PICTORIAL INDEX - MAIN SECTIONS

Запчасти Case CX210C NLC (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX

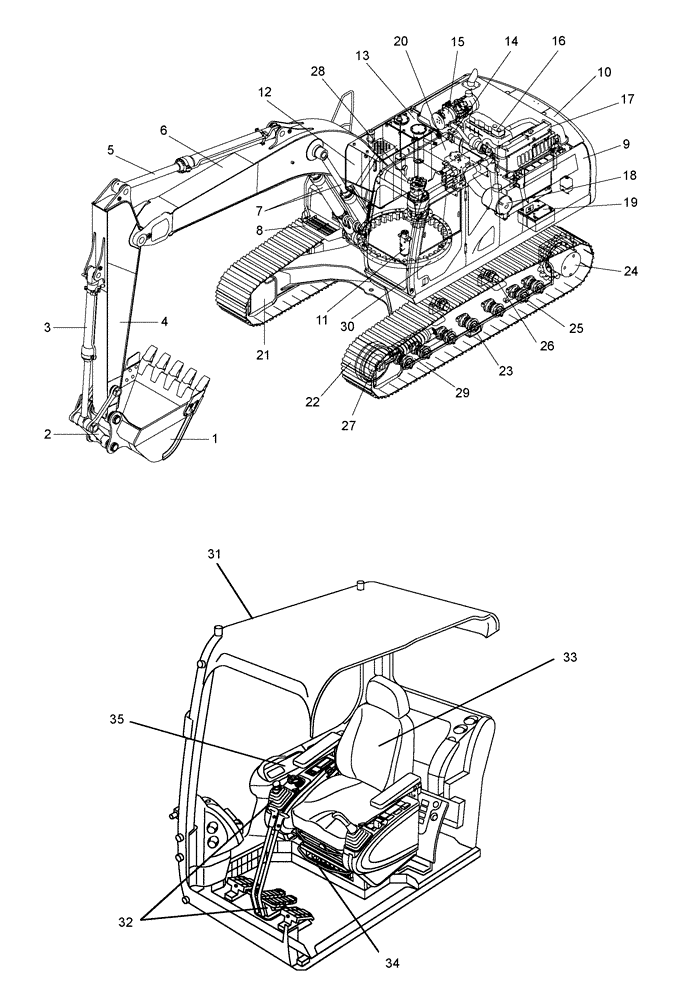

Схема запчастей Case CX210C NLC - (00.000.00) - PICTORIAL INDEX - MAIN SECTIONS (00) - GENERAL & PICTORIAL INDEX
29
4
30
27
2
16
11
15
7
3
1
19
10
14
12
33
1
17
34
28
35
26
9
24
5
18
21
25
23
6
13
32
20
8
31
22

№

Артикул

Название

Примечание

Количество

1

BUCKET - See Figure(s) 84.100.02 - 84.100.07

1шт.

2

BUCKET CONTROL - See Figure(s) 84.100.01

1шт.

3

BUCKET CYLINDER - See Figure(s) 35.738.01 - 35.738.03

1шт.

4

DIPPER - See Figure(s) 84.912.01 - 84.912.10

1шт.

5

DIPPER CYLINDER - See Figures 35.350.08, 35.737.02, 35.737.08, 35.737.09

1шт.

6

MONOBLOCK BOOM - See Figure(s) 84.114.01 - 84.114.08, 84.910.01, 84.910.02

1шт.

7

BOOM CYLINDER - See Figure(s) 35.350.07, 35.736.01, 35.736.02, 35.736.05 - 35.736.08

1шт.

8

UPPERSTRUCTURE CHASSIS - See Figure(s) 39.101.01, 39.101.02

1шт.

9

COWLING - See Figure(s) 90.100.01 (01) - 90.100.01 (04)

1шт.

10

COUNTERWEIGHT - See Figure(s) 39.140.01

1шт.

11

SWING JOINT - See Figure(s) 35.354.01

1шт.

12

FUEL TANK, FUEL SYSTEM - See Figure(s) 10.216.01, 10.216.02, 10.218.01 (01), 10.218.01 (02), 10.218.03 - 10.218.05

1шт.

13

HYDRAULIC RESERVOIR, HYDRAULIC SYSTEM - See Figure(s) 35.300.01 - 35.300.02

1шт.

14

HYDRAULIC PUMP - See Figure(s) 35.106.01 - 35.106.05

1шт.

15

EXHAUST ENGINE - See Figure(s) 10.254.01, 10.254.02 (01), 10.254.02 (02)

1шт.

16

ENGINE - See Figure(s) 10.004.04 (01), 10.103.01 (03), 10.103.03, 10.218.03, 10.218.04 (01), 10.218.05, 55.201.01 (01)

1шт.

17

RADIATOR - See Figure(s) 10.400.01, 10.400.02

1шт.

18

AIR FILTRATION - See Figure(s) 10.202.01

1шт.

19

BATTERIES, ELECTRICAL SYSTEM - See Figure(s) 55.302.01, 55.302.02

1шт.

20

CONTROL VALVE - See Figure(s) 35.359.06, 35.359.08, 35.359.10 - 35.359.13

1шт.

21

UNDERCARRIAGE, HYDRAULIC CIRCUIT - See Figure(s) 35.310.03, 39.100.01

1шт.

22

TRACK FOOT STEP - See Figure(s) 48.100.01 - 48.100.05

1шт.

23

GUIDE, CHAIN - See Figure(s) 48.130.03, 48.130.04

1шт.

24

TRAVEL MOTOR AND REDUCTIONGEAR - See Figure(s) 35.353.01 (01) - 35.353.01 (03)

1шт.

25

ROLLER LOWER - See Figure(s) 48.138.01

1шт.

26

ROLLER UPPER - See Figure(s) 48.138.01

1шт.

27

GUIDE PULLEY - See Figure(s) 48.130.01, 48.130.02

1шт.

28

SWING MOTOR-DRIVE REDUCTION GEAR - See Figure(s) 35.352.02, 35.352.03

1шт.

29

TENSION DAMPER - See Figure(s) 48.134.01

1шт.

30

SWING COMPONENTS, LUBRICATION CIRCUIT - See Figure(s) 39.103.01

1шт.

31

OPERATORS COMPARTMENT, CAB - See Figure(s) 90.150.01 (01), 90.150.01 (03), 90.150.03 - 90.150.08, 90.156.01 - 90.156.05, 90.160.01 - 90.160.04

1шт.

32

OPERATORS COMPARTMENT, LEVER, CONTROL - See Figure(s) 90.110.01 (01) - 90.110.01 (03), 90.110.02, 90.110.03

1шт.

33

OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING - See Figure(s) 90.120.01, 90.124.01

1шт.

34

CAB AIR CONDITIONING - See Figure(s) 50.200.01 (01), 50.200.01 (02), 50.200.02

1шт.

35

SIDE INSTRUMENT PANEL - See Figure(s) 90.150.01 (02), 90.150.01 (06)

1шт.

Выбрано товаров: 35
