Запчасти Case CX210C NLC (35.357.04[02]) - HYDRAULIC CIRCUIT - HAND CONTROL PILOT - WITHOUT SAFETY VALVE (35) - HYDRAULIC SYSTEMS

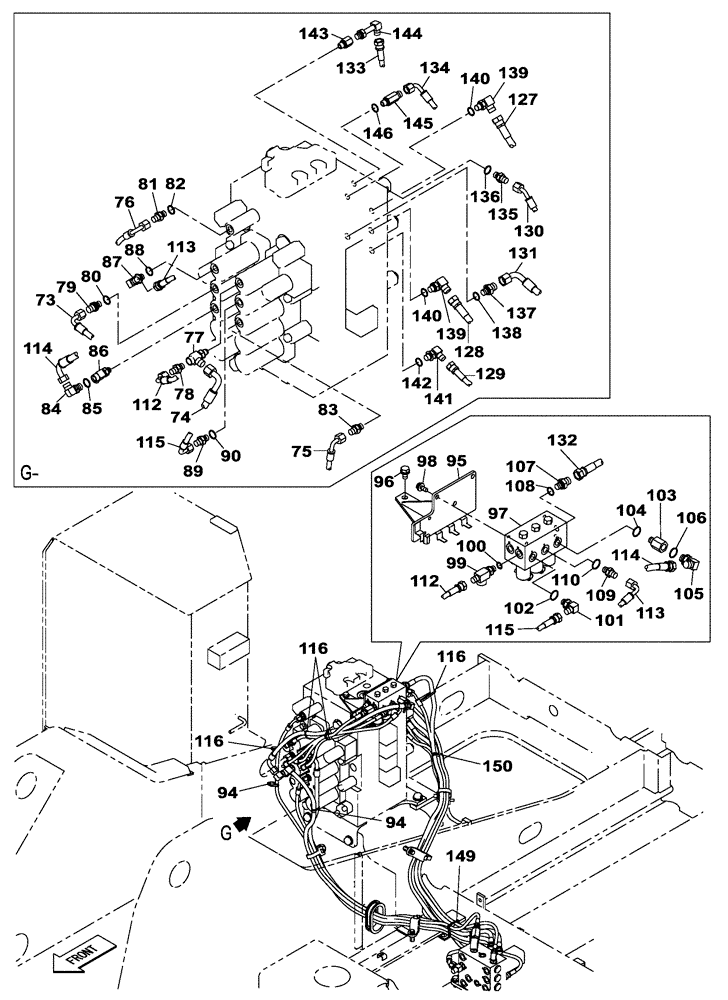

![Схема запчастей Case CX210C NLC - (35.357.04[02]) - HYDRAULIC CIRCUIT - HAND CONTROL PILOT - WITHOUT SAFETY VALVE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/700869.png)
№
Артикул
Название
Примечание
Количество
73
KHJ16210
HYDRAULIC HOSE
1шт.
74
KHJ11590
HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm
1шт.
75
KHJ11540
HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm
1шт.
76
KHJ2096
FLEXIBLE HOSE
1шт.
77
KHJ25080
TEE
1шт.
78
161841A1
HYD CONNECTOR
1шт.
79
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl 80
1шт.
80
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
81
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 82
1шт.
82
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
83
161841A1
HYD CONNECTOR
1шт.
84
KHJ0918
ADAPTER
Incl 85
1шт.
85
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
86
KHJ12530
TEE
1шт.
87
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl 88
1шт.
88
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
89
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 90
1шт.
90
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
94
150496A1
MOUNTING CLIP
3шт.
95
KBJ15690
BRACKET, SUPPORTING
1шт.
96
166351A1
BOLT,Sems, M10 x 20mm
2шт.
97
KHJ23870
VALVE
1шт.
98
166350A1
BOLT
3шт.
99
167666A1
FITTING
Incl 100
1шт.
100
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
101
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl 102
1шт.
102
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
103
KHJ1584
UNION
Incl 104
1шт.
104
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
105
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl 106
1шт.
106
154475A1
O-RING
1шт.
107
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl 108
1шт.
108
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
109
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 110
1шт.
110
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
112
KHJ2351
HOSE
1шт.
113
KHJ2309
HOSE
1шт.
114
KHJ13680
HYDRAULIC HOSE
1шт.
115
KHJ2343
HOSE
1шт.
116
150496A1
MOUNTING CLIP
6шт.
127
KHJ2099
HOSE
1шт.
128
KHJ2307
HOSE,9.5mm ID x 1200mm L
1шт.
129
KHJ2053
HOSE
1шт.
130
KHJ15120
HYDRAULIC HOSE
1шт.
131
KHJ11580
HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm
1шт.
132
KHJ2100
FLEXIBLE HOSE
1шт.
133
KHJ24760
FLEXIBLE HOSE
1шт.
134
KHJ11540
HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm
1шт.
135
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl 136
1шт.
136
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
137
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Incl 138
1шт.
138
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
139
KHJ0918
ADAPTER
Incl 140
2шт.
140
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
141
KHJ0917
ADAPTER
Incl 142
1шт.
142
154467A1
O-RING,10.8mm ID x 2.4mm Width
4шт.
143
KHJ13640
STUD
1шт.
144
KHJ1178
ELBOW
1шт.
145
KHJ13640
STUD
Incl 146
1шт.
146
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
149
150498A1
MOUNTING CLIP
1шт.
150
150496A1
MOUNTING CLIP
4шт.
Выбрано товаров: 62
