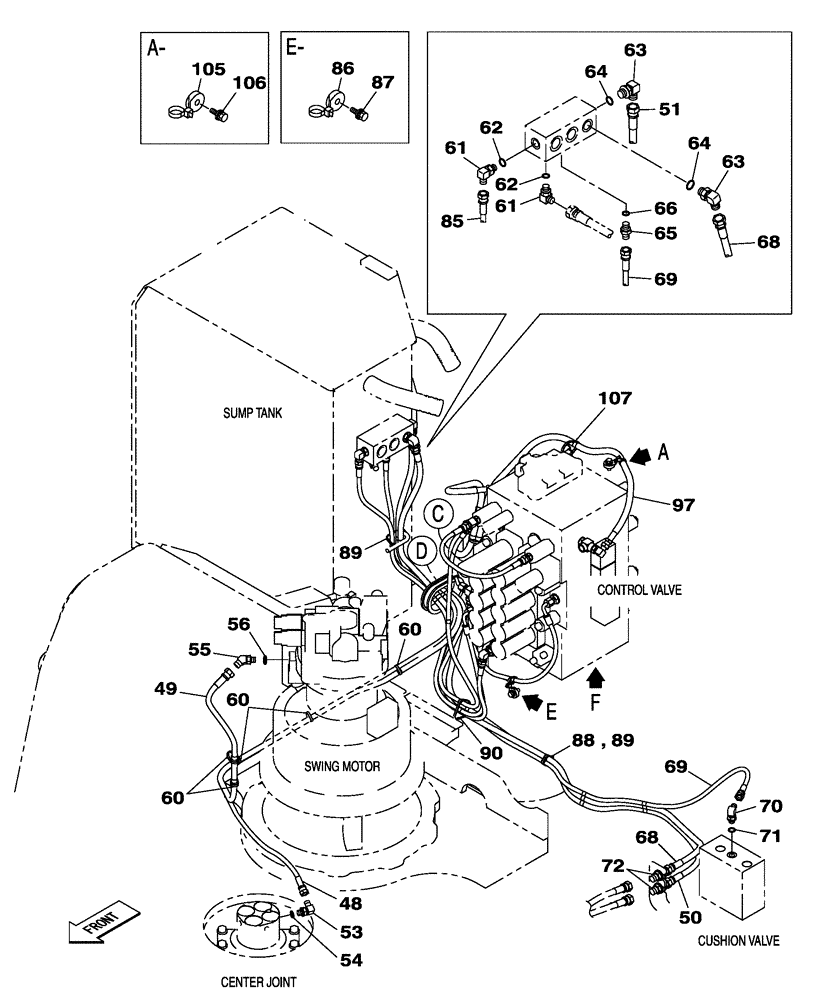

Запчасти Case CX210C NLC (35.357.01[02]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (35) - HYDRAULIC SYSTEMS

48

KHJ2166

HOSE,6.3mm ID x 2300mm L

2300 mm

1шт.

49

KHJ14900

HYDRAULIC HOSE,9.52 mm ID x 2600.00 mm

1шт.

50

KHJ2369

HOSE,9.5 mm ID x 2250.00 mm

2250 mm

1шт.

51

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

53

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 54

2шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

161087A1

ELBOW

Incl 56

1шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

60

150496A1

MOUNTING CLIP

5шт.

61

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 62

2шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl 64

2шт.

64

154475A1

O-RING

1шт.

65

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

KHJ2417

HOSE

2050 mm

1шт.

69

KHJ2255

HOSE

2100 mm

1шт.

70

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

162826A1

ADAPTER

2шт.

85

KHJ11170

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

1шт.

86

KHR2584

CLAMP

1шт.

87

KHJ1215

BOLT,Spcl

1шт.

88

KHR10220

MOUNTING CLIP

1шт.

89

150496A1

MOUNTING CLIP

250 mm

3шт.

90

150498A1

MOUNTING CLIP

300 mm

1шт.

97

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

1шт.

105

KHR2584

CLAMP

5шт.

106

KHJ1215

BOLT,Spcl

5шт.

107

150496A1

MOUNTING CLIP

250 mm

3шт.
