Запчасти Case CX210C NLC (35.357.01[01]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (35) - HYDRAULIC SYSTEMS

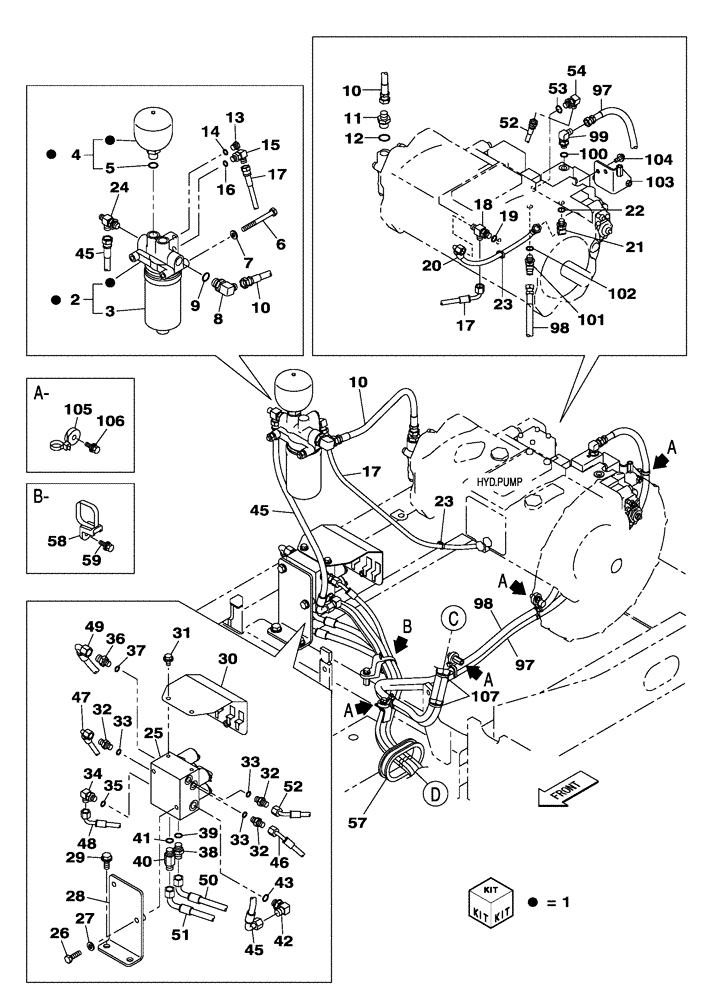

Схема запчастей Case CX210C NLC - (35.357.01[01]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (35) - HYDRAULIC SYSTEMS
31
104
35
99
8
106
26
49
27
32
2
29
14
36
105
52
18
107
24
46
47
25
33
32
42
16
7
21
32
54
13
100
10
51
33
10
97
97
46
30
11
12
45
1
19
59
17
43
9
6
39
5
57
45
3
58
15
101
28
34
98
4
40
20
33
50
10
23
17
48
102
38
98
52
37
22
103
23
53
17
41

Артикул

Название

Примечание

Количество

1

KHJ17710

FILTER ASSY

Incl 2 - 5

1шт.

2

KHJ17720

FILTER HEAD

Incl 3

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

1шт.

4

KHJ2359

ACCUMULATOR

Incl 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

157935A1

ELBOW

Incl 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

11

161084A1

ADAPTER

Incl 12

1шт.

12

154487A1

O-RING

1шт.

13

159002A1

PLUG

Incl 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ2036

HOSE

750 mm

1шт.

18

159497A1

TEE

Incl 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

KHJ2342

HOSE

380 mm

1шт.

21

150933A1

ELBOW

Incl 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150496A1

MOUNTING CLIP

250 mm

2шт.

24

KHJ13900

TEE

1шт.

25

KHJ14520

SOLENOID VALVE

1шт.

26

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

27

150409A1

WASHER

2шт.

28

KHJ14960

SUPPORT

1шт.

29

166352A1

BOLT

M12 x 30

2шт.

30

KHJ16220

COVER

1шт.

31

166345A1

BOLT

M8 x 16

2шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 33

3шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

152747A1

ADAPTER

Incl 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl 39

1шт.

39

154475A1

O-RING

1шт.

40

159226A1

ADAPTER

Incl 41

1шт.

41

154475A1

O-RING

1шт.

42

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl 43

1шт.

43

154475A1

O-RING

1шт.

45

KHJ2148

HOSE

550 mm

1шт.

46

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

1шт.

47

KHJ2097

HOSE

1750 mm

1шт.

48

KHJ2197

HOSE

2350 mm

1шт.

49

KHJ2626

HYDRAULIC HOSE,2650.00 mm

1шт.

50

KHJ2369

HOSE,9.5 mm ID x 2250.00 mm

2250 mm

1шт.

51

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

52

KHJ2087

HYDRAULIC HOSE,800.00 mm

1шт.

53

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 54

2шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

MMA1011

RUBBER SEAL

1шт.

58

KHR2581

CLAMP

1шт.

59

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

97

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

1шт.

98

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

99

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

150933A1

ELBOW

Incl 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KRJ16150

SUPPORT

1шт.

104

166350A1

BOLT

M8 x 20

2шт.

105

KHR2584

CLAMP

5шт.

106

KHJ1215

BOLT,Spcl

M8 x 25

5шт.

107

150496A1

MOUNTING CLIP

3шт.

Выбрано товаров: 67
