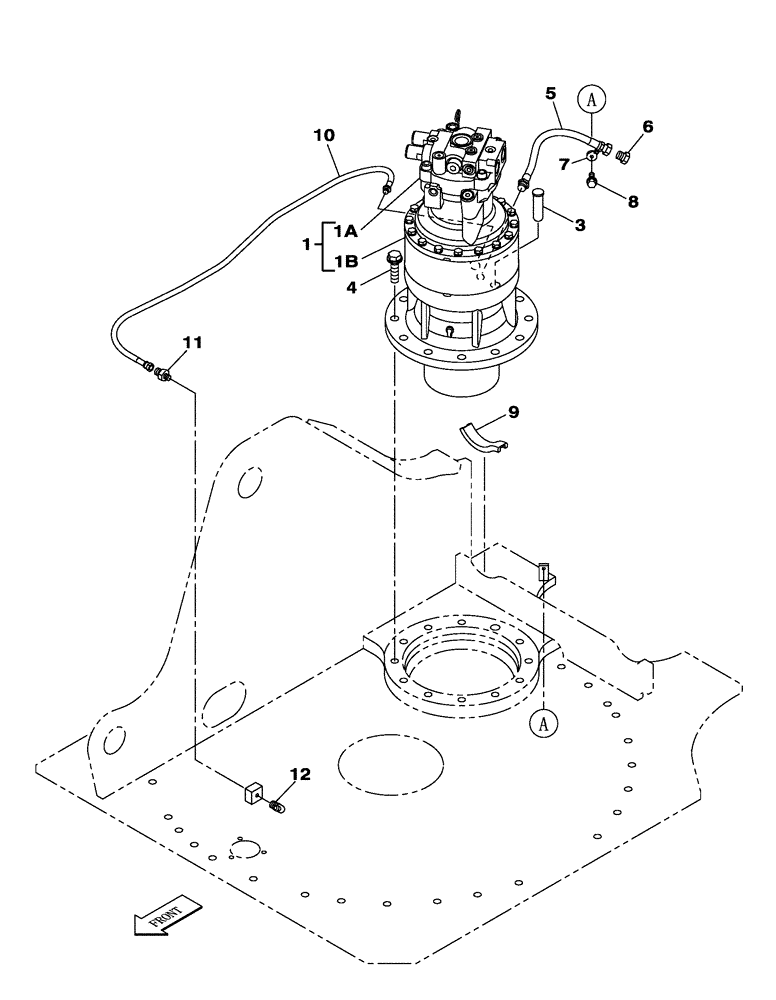

Запчасти Case CX210C NLC (35.352.02) - SWING MOTOR-DRIVE REDUCTION GEAR (35) - HYDRAULIC SYSTEMS

1

KRC10220

MOTO-REDUCTION GEAR

Inc. 1A - 1B

1шт.

1

KRC10260R

REMAN-HYD MOTOR

CX210C NLC CRAWLER EXCAVATOR - TIER 4 (NA), SWING MOTOR-DRIVE REDUCTION GEAR (4/12-), Reman for New PN KRC10220

1шт.

1

KRC10260C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1a

LJ014440

HYDRAULIC MOTOR

1шт.

1b

LN001820

REDUCER

1шт.

1b

LN001820R

REMAN-REDUCTION UNIT

1шт.

1b

LN001820C

CORE-REDUCTION UNIT

Return Number

1шт.

3

158955A1

HEADED PIN

1шт.

4

166354A1

BOLT,Sems, M20 x 75mm

M20 x75

11шт.

5

KRJ16100

HYDRAULIC HOSE,12.70 mm ID x 470.00 mm

1шт.

6

KHP0578

PLUG

1шт.

7

KHR2584

CLAMP

1шт.

8

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

9

KAJ4772

SEAL PROTECTION

1шт.

10

KHJ14930

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

1шт.

11

KRJ4050

ADAPTER

1шт.

12

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.
