Запчасти Case CX210C LR (35.322.01[03]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (35) - HYDRAULIC SYSTEMS

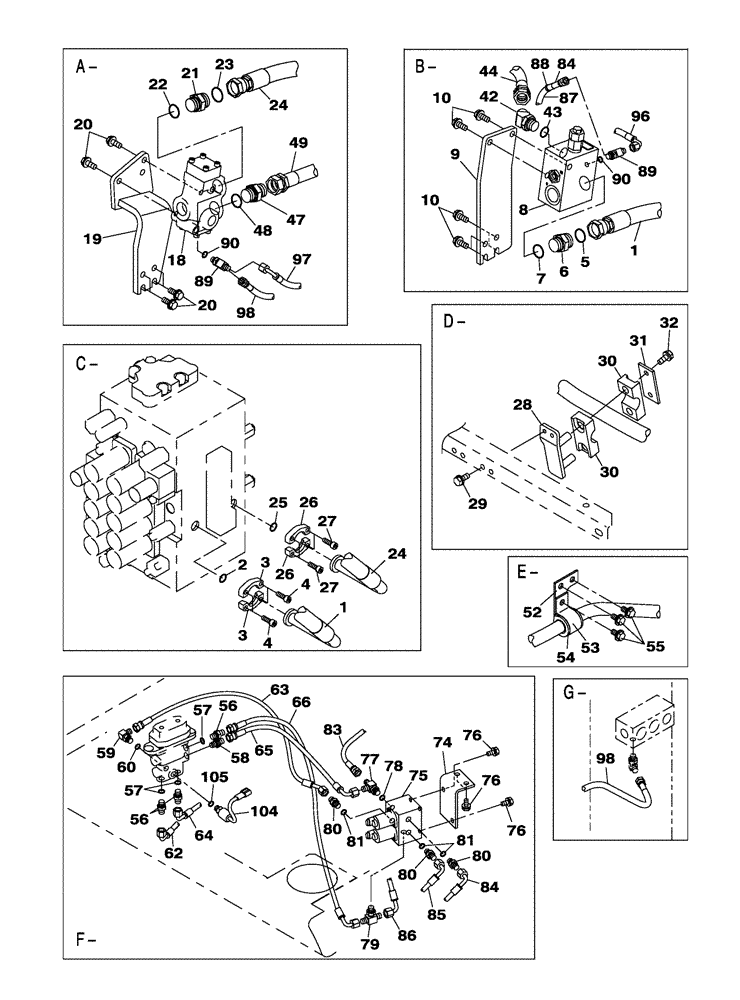

Схема запчастей Case CX210C LR - (35.322.01[03]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (35) - HYDRAULIC SYSTEMS
23
30
57
42
7
24
98
26
31
20
25
43
21
60
104
3
52
83
105
90
89
80
19
88
32
27
64
9
80
57
10
77
78
74
75
97
20
29
24
65
87
66
53
48
30
56
89
49
59
90
58
81
62
2
47
44
84
76
98
55
76
54
96
84
1
4
80
56
4
18
27
5
85
8
63
10
3
6
81
26
76
1
28
22
79

Артикул

Название

Примечание

Количество

1

KBJ10550

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ1349

ADAPTER

Incl 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ10410

VALVE SECTION

1шт.

18

KHJ10420

VALVE SECTION

1шт.

19

KRJ16050

SUPPORT

1шт.

21

KHJ1349

ADAPTER

Incl 22

1шт.

22

154523A1

O-RING

1шт.

23

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

24

KRJ29930

HYDRAULIC HOSE

1550 mm

1шт.

25

155211A1

O-RING

1шт.

26

153459A1

FLANGE

2шт.

27

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

28

KBJ15670

BRACKET

1шт.

29

166052A1

BOLT

M10 x 25

2шт.

30

KRJ11450

HOSE CLIP

2шт.

31

KRJ10800

PLATE

1шт.

32

166052A1

BOLT

M10 x 25

2шт.

42

157586A1

ELBOW

Incl 43

1шт.

43

154503A1

O-RING

1шт.

44

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

47

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl 48

1шт.

48

154523A1

O-RING

1шт.

49

KRJ16340

HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm

1шт.

52

KRJ16280

SUPPORT

1шт.

53

KBJ11860

SUPPORT

1шт.

54

KHJ2680

COLLAR CLAMP

1шт.

55

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

56

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 57

3шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

161841A1

HYD CONNECTOR

1шт.

59

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

KHJ2165

HOSE

2900 mm

1шт.

63

KHJ14650

HYDRAULIC HOSE

650 mm

1шт.

64

KHJ2165

HOSE

2900 mm

1шт.

65

KHJ2085

HOSE

600 mm

1шт.

66

KHJ2194

HOSE,6.3mm ID x 650mm L

650 mm

1шт.

74

KHJ14680

SUPPORT

1шт.

75

KHJ14000

VALVE SECTION

1шт.

76

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

6шт.

77

159497A1

TEE

Incl 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

167321A1

TEE

1шт.

80

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

80

162554A1

FITTING

Incl 81

2шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

KHJ2036

HOSE

750 mm

1шт.

84

KHJ18110

HOSE

4000 mm

1шт.

85

KHJ12240

HOSE

3750 mm

1шт.

86

KHJ23570

FLEXIBLE HOSE

730 mm

1шт.

87

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1000 mm

1шт.

88

150067A1

MOUNTING CLIP

150 mm

2шт.

89

159497A1

TEE

Incl 90

2шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

KHJ16850

HOSE

800 mm

1шт.

97

KHJ16870

HOSE

1000 mm

1шт.

98

KHJ16890

HOSE

900 mm

1шт.

104

KHR21490

PRESSURE SWITCH

Incl 105

1шт.

105

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

Выбрано товаров: 64
