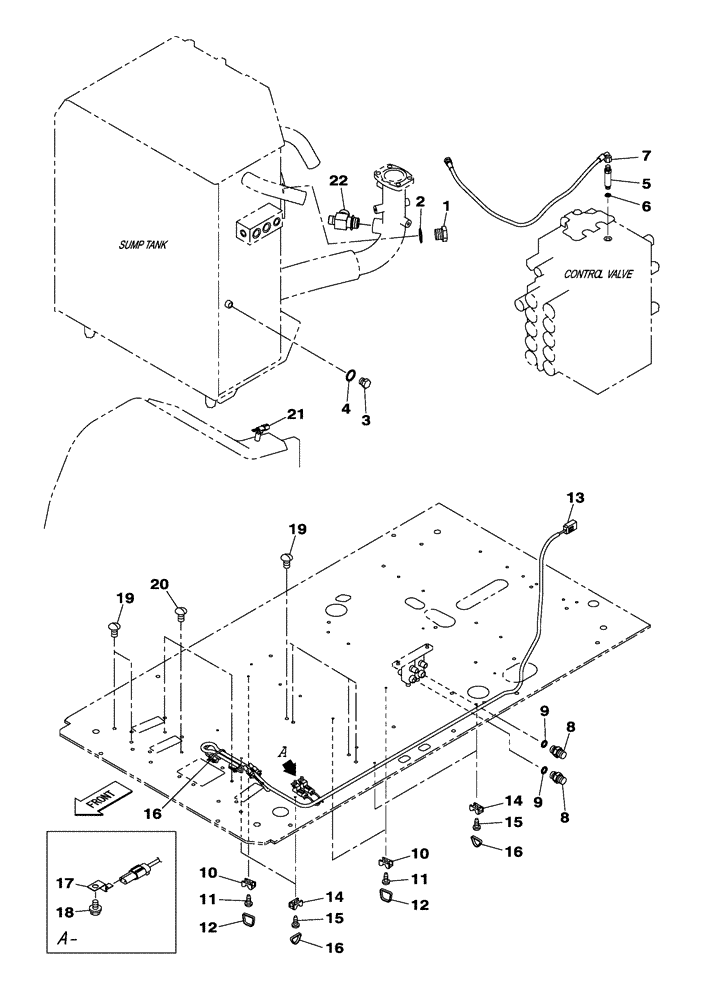

Запчасти Case CX210C LR (35.310.08) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (35) - HYDRAULIC SYSTEMS

1

162659A1

PLUG

Incl 2

1шт.

2

154523A1

O-RING

1шт.

3

159002A1

PLUG

Incl 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

163104A1

ADAPTER

Incl 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ2249

HOSE

950 mm

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 9

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

150860A1

COLLAR

3шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

12

150496A1

MOUNTING CLIP

250 mm

3шт.

13

KHR28610

WIRE HARNESS

10 Pin connector, Serial Range: -NCSAH1223

1шт.

13

KHR32450

WIRE HARNESS

16 Pin connector, Start Serial: NCSAH1224

1шт.

14

150860A1

COLLAR

4шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

16

150496A1

MOUNTING CLIP

250 mm

5шт.

17

158962A1

CLIP

2шт.

18

166345A1

BOLT

M8 x 16

2шт.

19

KHJ15060

CAP

6шт.

20

KHJ15080

CAP

3шт.

21

KHR16740

WIRE HARNESS

1шт.

22

KHJ23010

TEE

1шт.
