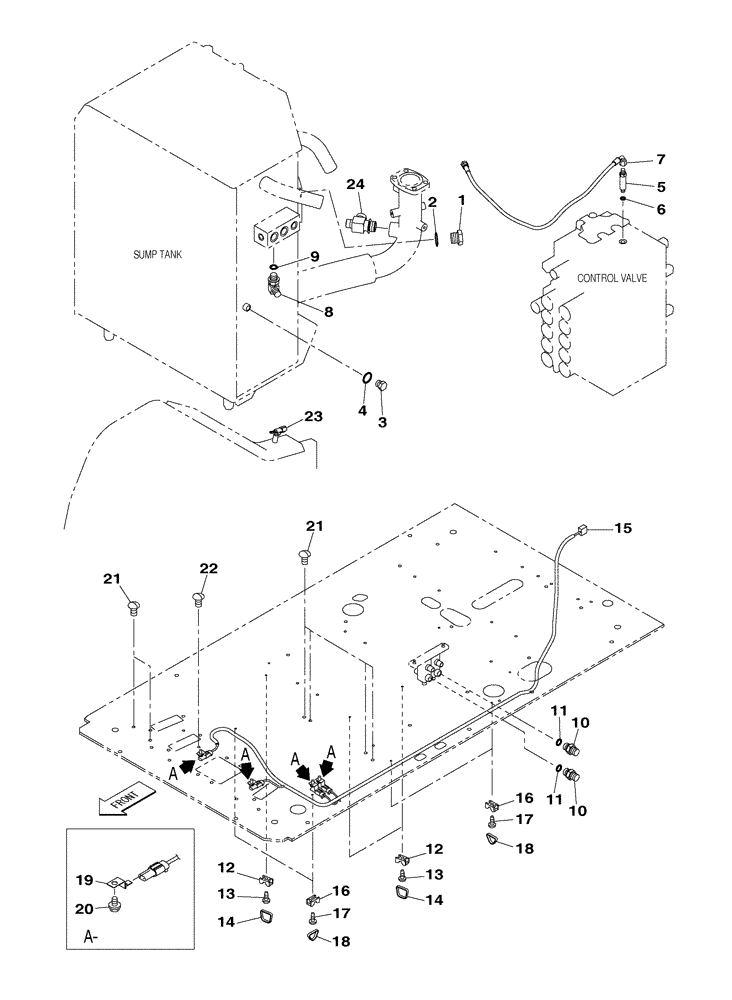

Запчасти Case CX210C LR (35.310.07) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF - OPTIONAL (35) - HYDRAULIC SYSTEMS

1

162659A1

PLUG

Incl 2

1шт.

2

154523A1

O-RING

1шт.

3

159002A1

PLUG

Incl 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

163104A1

ADAPTER

Incl 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

KHJ2249

HOSE

950 mm

1шт.

8

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 11

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

150860A1

COLLAR

3шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

14

150496A1

MOUNTING CLIP

250 mm

3шт.

15

KHR28600

WIRE HARNESS

1шт.

16

150860A1

COLLAR

4шт.

17

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

18

150496A1

MOUNTING CLIP

250 mm

4шт.

19

158962A1

CLIP

4шт.

20

166345A1

BOLT

M8 x 16

4шт.

21

KHJ15060

CAP

6шт.

22

KHJ15080

CAP

1шт.

23

KHR16740

WIRE HARNESS

1шт.

24

KHJ23010

TEE

1шт.
