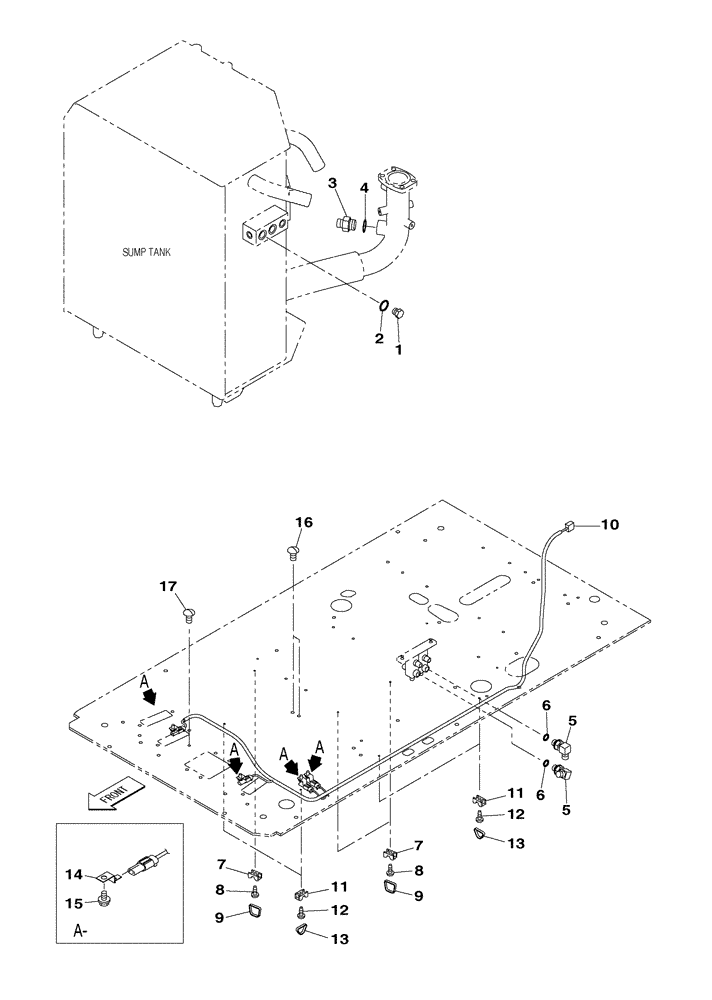

Запчасти Case CX210C LR (35.310.05) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF - OPTIONAL (35) - HYDRAULIC SYSTEMS

1

159085A1

PLUG

Incl 2

1шт.

2

154487A1

O-RING

1шт.

3

169040A1

ADAPTER

Incl 4

1шт.

4

154523A1

O-RING

1шт.

5

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

150860A1

COLLAR

3шт.

8

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

9

150496A1

MOUNTING CLIP

250 mm

3шт.

10

KHR28600

WIRE HARNESS

1шт.

11

150860A1

COLLAR

4шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

13

150496A1

MOUNTING CLIP

250 mm

4шт.

14

158962A1

CLIP

4шт.

15

166345A1

BOLT

M8 x 16

4шт.

16

KHJ15060

CAP

2шт.

17

KHJ15080

CAP

1шт.
