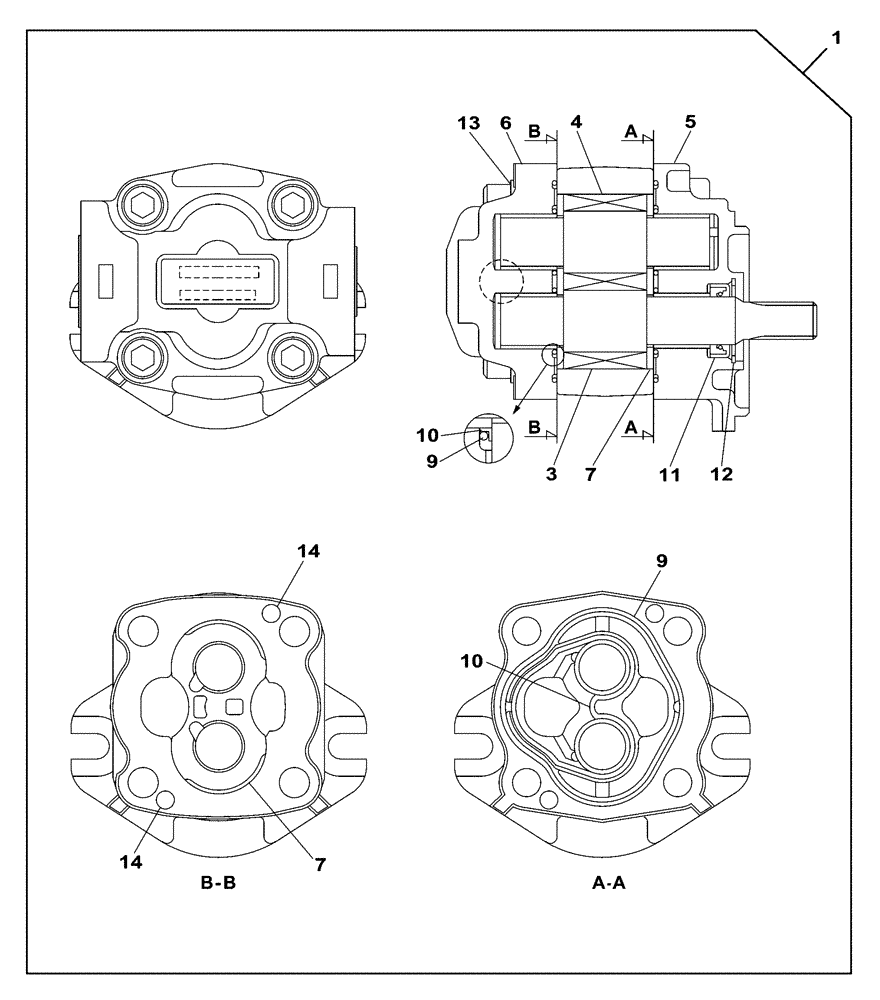

Запчасти Case CX210C LR (35.106.03) - HYDRAULIC PUMP - COUPLING - OPTIONAL (35) - HYDRAULIC SYSTEMS

1

KRJ10300

HYDRAULIC PUMP

Incl 2 - 14

1шт.

1

KRJ10300R

REMAN-HYD PUMP

CX210C LR CRAWLER EXCAVATOR - TIER 4 (NA) (4/12-)

1шт.

1

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

LC002970

GEAR

1шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

4

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

5

LH004940

FLANGE

1шт.

6

LW005070

COVER

1шт.

7

LR015150

PLATE

2шт.

8

LZ008000

REPAIR KIT

Incl 9 - 12

1шт.

9

LAP0032

SEAL

2шт.

10

LBP0073

BACK-UP RING

2шт.

11

LAP0033

OIL SEAL

1шт.

12

LMP0257

RING

1шт.

13

LA011070

BOLT,Hex Skt Hd

4шт.

14

LA011060

SPECIAL PIN

4шт.
