(90.160.02) - OPERATORS COMPARTMENT - MAT, FLOOR - OPTIONAL

Запчасти Case CX210C LR (90.160.02) - OPERATORS COMPARTMENT - MAT, FLOOR - OPTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

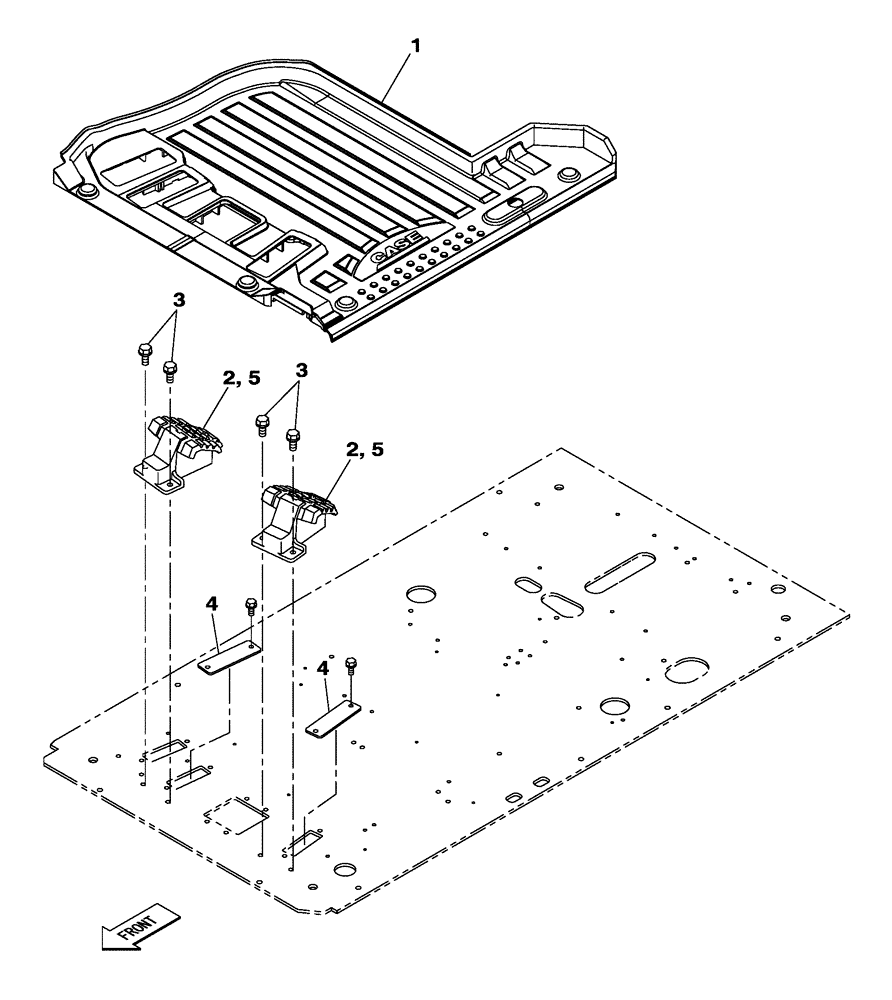

Схема запчастей Case CX210C LR - (90.160.02) - OPERATORS COMPARTMENT - MAT, FLOOR - OPTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
3
3
1
5
5
2
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ24590

FLOOR MAT

1шт.

2

KHJ13860

FOOTREST

2шт.

3

166052A1

BOLT

4шт.

4

KHJ14550

GROMMET

2шт.

5

KHP1400

COVER

Protection Bag

2шт.
