(90.160.01) - OPERATORS COMPARTMENT - MAT, FLOOR - STANDARD

Запчасти Case CX210C LR (90.160.01) - OPERATORS COMPARTMENT - MAT, FLOOR - STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

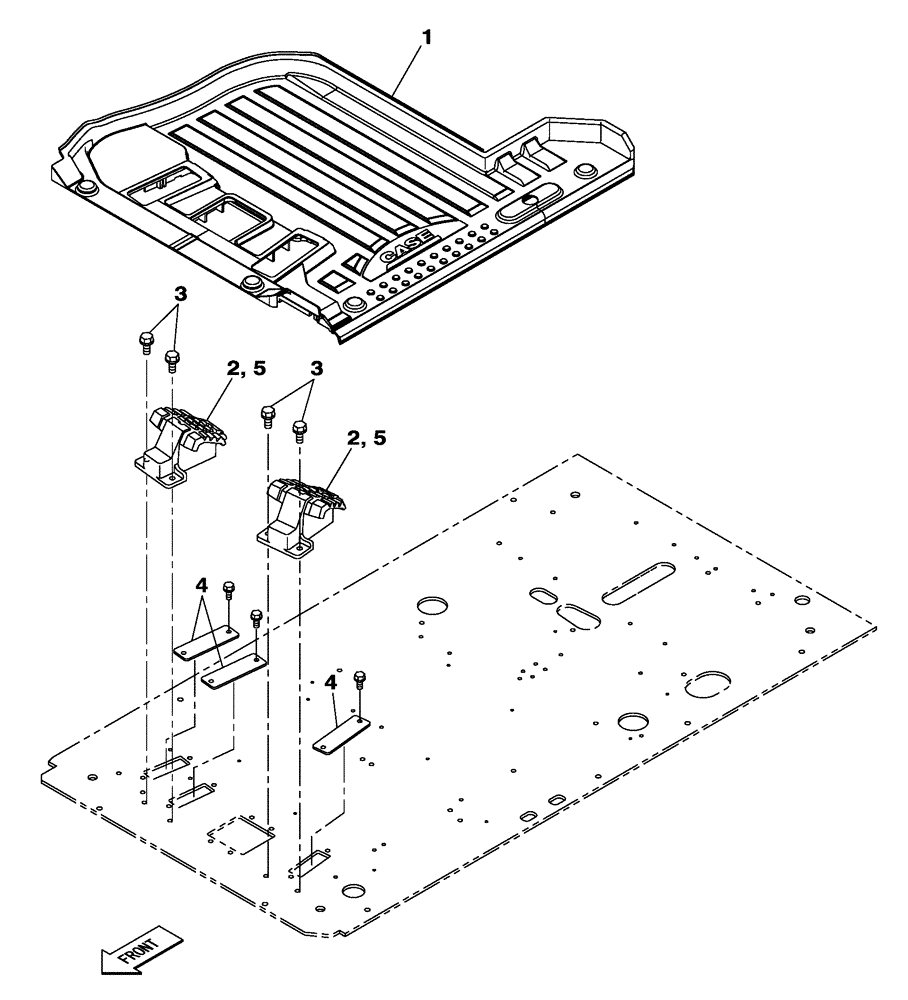

Схема запчастей Case CX210C LR - (90.160.01) - OPERATORS COMPARTMENT - MAT, FLOOR - STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
5
5
4
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ24320

FLOOR MAT

1шт.

2

KHJ13860

FOOTREST

2шт.

3

166052A1

BOLT

M10 x 25

4шт.

4

KHJ14550

GROMMET

3шт.

5

KHP1400

COVER

Protection Bag

2шт.
