/ / / / / / / / (90.150.01[04]) - CAB - REAR WINDOW - HANDLE - WINDSHIELD WASHER
Запчасти Case CX210C LR (90.150.01[04]) - CAB - REAR WINDOW - HANDLE - WINDSHIELD WASHER (90) - PLATFORM, CAB, BODYWORK AND DECALS

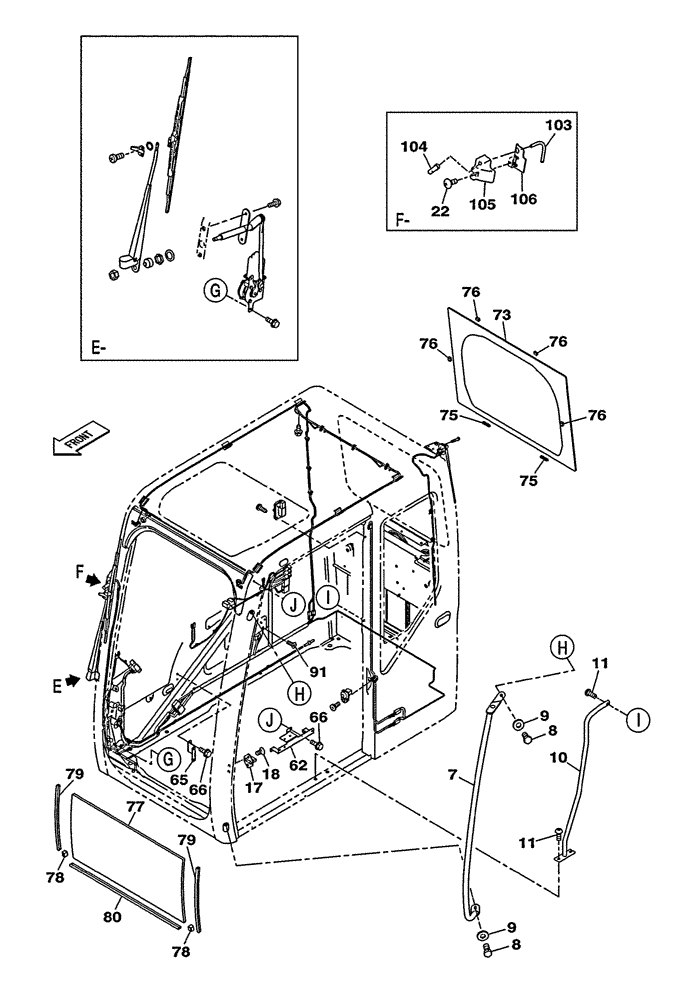

![Схема запчастей Case CX210C LR - (90.150.01[04]) - CAB - REAR WINDOW - HANDLE - WINDSHIELD WASHER (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/133415.png)
66
78
10
75
66
8
76
78
62
9
11
106
79
76
80
78
76
65
17
7
104
8
75
18
73
9
76
105
11
22
77
91
103
7
KHN14110
HANDRAIL
1шт.
8
KHN14120
BOLT,Spcl
2шт.
9
KHN14130
WASHER
2шт.
10
KHN14150
HANDRAIL
1шт.
11
KHN14160
BOLT,Spcl
3шт.
17
KHN14200
STOP
1шт.
18
KHN2702
SCREW,Spcl
2шт.
22
KHN2682
SCREW,Spcl
5шт.
62
KHN25320
BRACKET, SUPPORTING
1шт.
65
KHN25360
BRACKET, SUPPORTING
1шт.
66
KHN18870
BOLT
20шт.
73
KHN25250
CAB GLASS
1шт.
75
KHN14980
SPACER
6шт.
76
KHN14990
SPACER
11шт.
77
KHN25610
CAB GLASS
1шт.
78
KHN25850
STOP
2шт.
79
KHN25820
SEAL, GLASS
2шт.
80
KHN15030
SEAL, GLASS
1шт.
91
KHN2719
SCREW,Spcl
1шт.
103
KHN16050
TUBE
1шт.
104
KHN2746
NOZZLE
1шт.
105
KHN25710
HOLDER
1шт.
106
KHN25720
PACKING
1шт.
