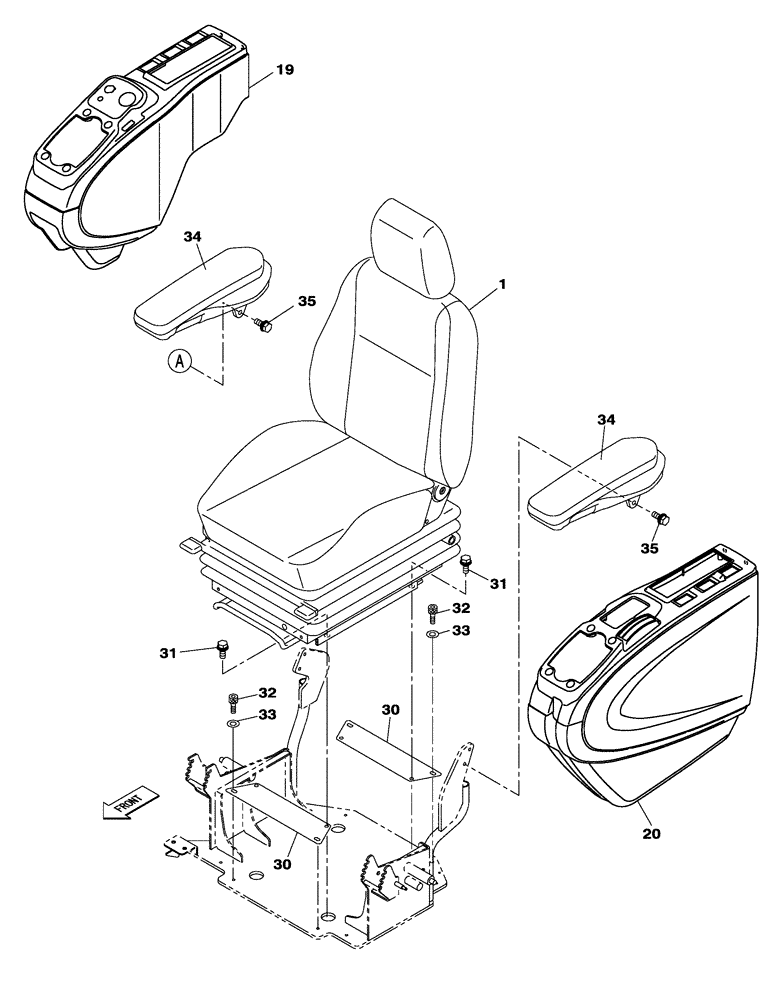

Запчасти Case CX210C LR (90.120.01) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87706000

DRIVER SEAT

1шт.

30

KHN13531

PLATE

2шт.

31

166350A1

BOLT

4шт.

32

108R008Y020R

HEX SOC SCREW

4шт.

32

KHN26570

BOLT

4шт.

33

892-11008

LOCK WASHER,8mm ID

4шт.

33

KHN26580

WASHER

4шт.

34

KHN27560

ARMREST

2шт.

35

KHN13540

BOLT,Spcl

4шт.

35

KHN13540

BOLT,Spcl

2шт.

19

REF

INSTRUCTION

RH

1шт.

20

REF

INSTRUCTION

LH

1шт.
