(90.110.01[03]) - OPERATORS COMPARTMENT - BOX - GUIDE, SLIDE

Запчасти Case CX210C LR (90.110.01[03]) - OPERATORS COMPARTMENT - BOX - GUIDE, SLIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

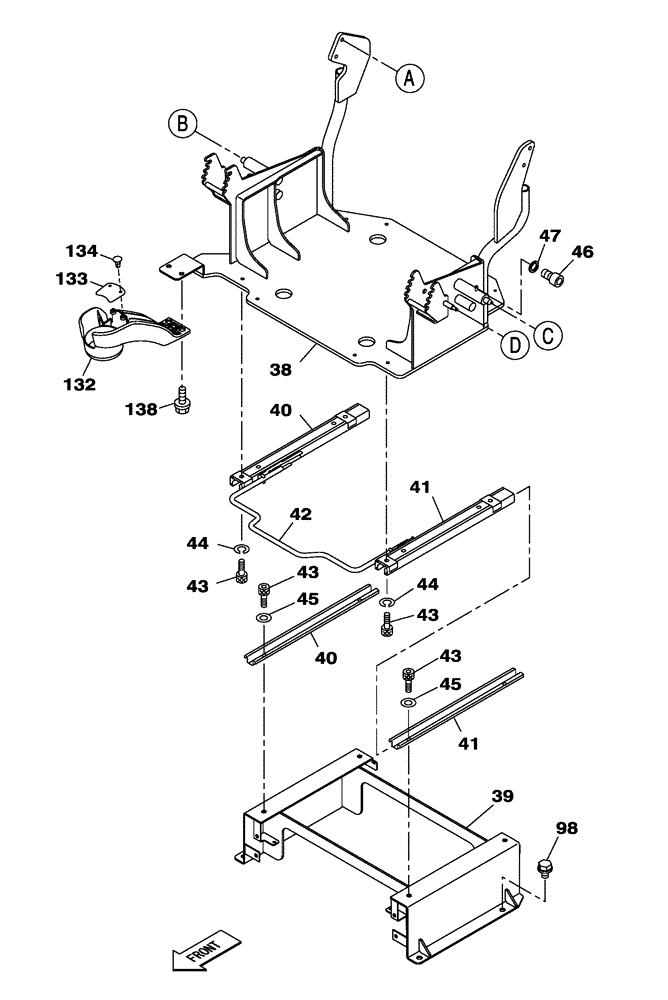

Схема запчастей Case CX210C LR - (90.110.01[03]) - OPERATORS COMPARTMENT - BOX - GUIDE, SLIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
39
43
132
133
46
38
44
44
42
134
45
98
43
138
45
40
43
40
43
41
41
47
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

38

KHN24071

BASE PLATE

1шт.

39

KHN24082

SLIDE

1шт.

40

KHN13421

SLIDE GUIDE

1шт.

41

KHN13431

SLIDE GUIDE

1шт.

42

KHN24050

LEVER

1шт.

43

108R008Y016R

BOLT

8шт.

44

183-108VR

SPRING WASHER

4шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

46

862-12020

HEX SOC SCREW,M12 x 20mm, Cl 12.9

1шт.

47

892-11012

LOCK WASHER,M12

1шт.

98

166346A1

BOLT,Sems, M10

4шт.

132

KHN23220

HOLDER

1шт.

133

KHN14760

PLATE

1шт.

134

KHN2470

CLIP

2шт.

138

KHN13540

BOLT,Spcl

2шт.
