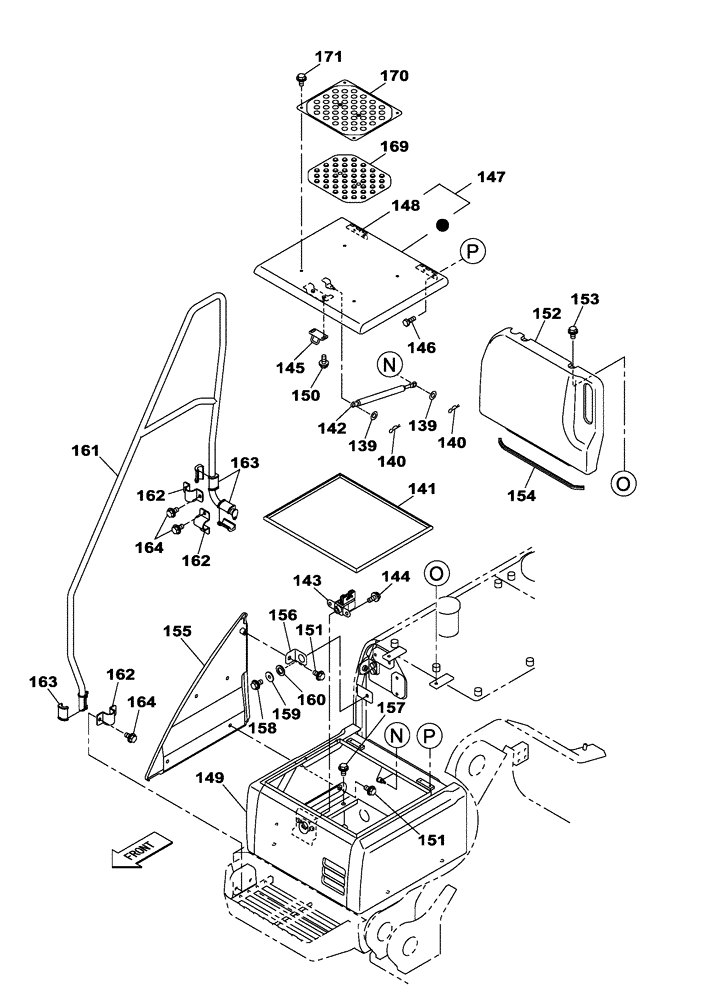

Запчасти Case CX210C LR (90.100.01[03]) - COWLING - FRONT RIGHT HAND-SIDE CABINET (90) - PLATFORM, CAB, BODYWORK AND DECALS

139

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

140

153077A1

COTTER PIN

2шт.

141

KRN16030

SEALING STRIP

1шт.

142

KHN24400

GAS STRUT

1шт.

143

KHN12730

LOCK

1шт.

144

166351A1

BOLT,Sems, M10 x 20mm

2шт.

145

KHN12740

SUPPORT

1шт.

146

KAN2771

BOLT,Spcl

4шт.

147

KRN12360G1

COVER

Incl 148

1шт.

148

KHN3390

HINGE

2шт.

149

KRN12350G1

COVER

1шт.

150

166350A1

BOLT

2шт.

151

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

152

KRN12370G1

COVER

1шт.

153

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

154

KRN12790

SEAL PROTECTION

1шт.

155

KHN12710Y2

COVER

1шт.

156

KHN12720

SUPPORT

1шт.

157

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

158

166352A1

BOLT

1шт.

159

162409A1

WASHER

1шт.

160

KHN2061

WASHER

1шт.

161

KHN12681B1

STAY

1шт.

162

KHN12690

COLLAR

3шт.

163

KHN12700

COLLAR

6шт.

164

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

169

KHN10940

RUBBER PAD

2шт.

170

KHN13510B1

COVER

2шт.
